YN27C Hand Held Gasoline Rock Drill High Speed Internal Combustion Rock Drill
-
Highlight
Hand Held Gasoline Rock Drill
,YN27C Gasoline Rock Drill
,High Speed internal combustion rock drill
-
Bit TypeDiamond Bit
-
HS Code8430390000
-
Type Of EngineAir Cooled
-
ColorYellow Golden
-
Overall& Dimension746X315X229mm
-
Cylinder Diameter58X160X70mm
-
Drilling Speed250mm /Min
-
Max. Drilling Depth6m
-
After-sales ServiceTracking Guidance & Service
-
WarrantyOne Year
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberYN27C
-
Minimum Order Quantity1PC
-
PriceUSD500-1000/PC
-
Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
YN27C Hand Held Gasoline Rock Drill High Speed Internal Combustion Rock Drill
Description of Gasoline Internal Combustion Jack Hammer Rock Drill

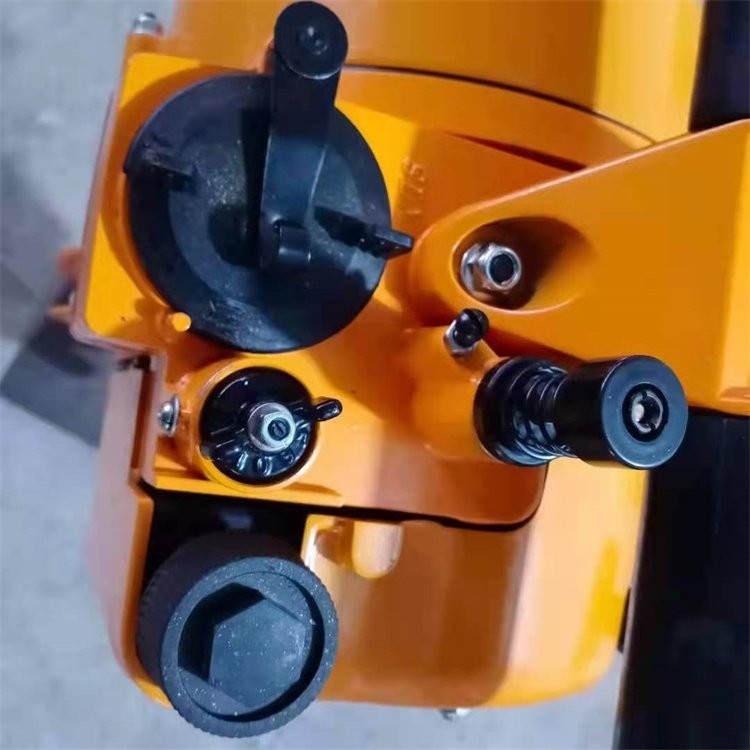

The Internal Combustion Rock Drill Hand Held type YN27C can be used as a tool for both breaking and percussive drilling with higher cost performance, which is widely praised by customers. There is a conversion device in the machine, the machine will operate with a percussive drilling function if you turn up the lock pin and operate with a breaking function if you turn down the lock pin, which is easy to use.
Features of Gasoline Internal Combustion Jack Hammer Rock Drill :
1. Blast hole diameter is about 34m-42m, and the drill hole depth is 6m.
2. This kind of machine is a new kind of high-efficiency air-leg rock drill machinery.
3. It is suitable for drilling and blasting under various rocks and direction angles.
4. It is mainly used for blasting holes and other drilling works in quarries, railway construction, water conservancy construction, and defense project facility.
5. First-class level Drilling Tools, are suitable for sites without power or air pressure equipment, it has wide adaptability for high mountains and plains, and extreme temperature (±40ºC).
Features of Gasoline Internal Combustion Jack Hammer Rock Drill Features
| Weight | 27KG | Drilling diameter | 22mm | Piston stroke | 70mm |
| Size | 746*315*229mm | Drilling depth | 5m | Engine speed | >=2450r/min |
| Impact Frequency | 34Hz | Drilling Speed | 5mm/min | Impact energy | >=25J |
b: Convinient operation
c: Fast drilling velocity
d: Energy-saving
e: Efficient
f: The long service life of parts
g: Parts highly interchangeable and reliable performance etc
h: Both handheld and with airleg available.
Entire Service of Gasoline Internal Combustion Jack Hammer Rock Drill
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
Our products are sold all over the world, you can rest assured.
