Yn27c Internal Combustion Rock Drill
,Internal Combustion Rock Drill 250mm/Min
,Portable Handle Yn27c Drilling Rig
-
Bit TypeDiamond Bit
-
HS Code8430390000
-
Type Of EngineAir Cooled
-
ColorYellow Golden
-
Overall& Dimension746X315X229mm
-
Cylinder Diameter58X160X70mm
-
Drilling Speed250mm /Min
-
Max. Drilling Depth6m
-
After-sales ServiceTracking Guidance & Service
-
WarrantyOne Year
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberYN27C
-
Minimum Order Quantity1PC
-
PriceUSD500-1000/PC
-

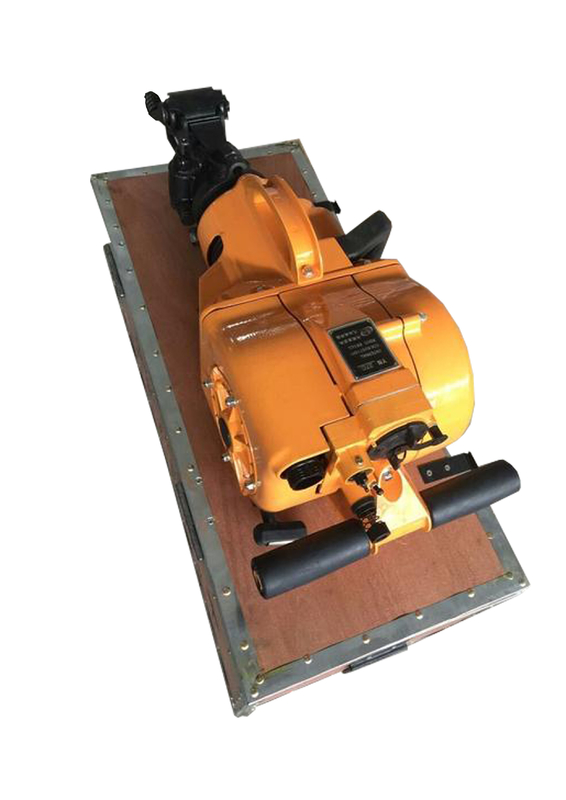

Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram

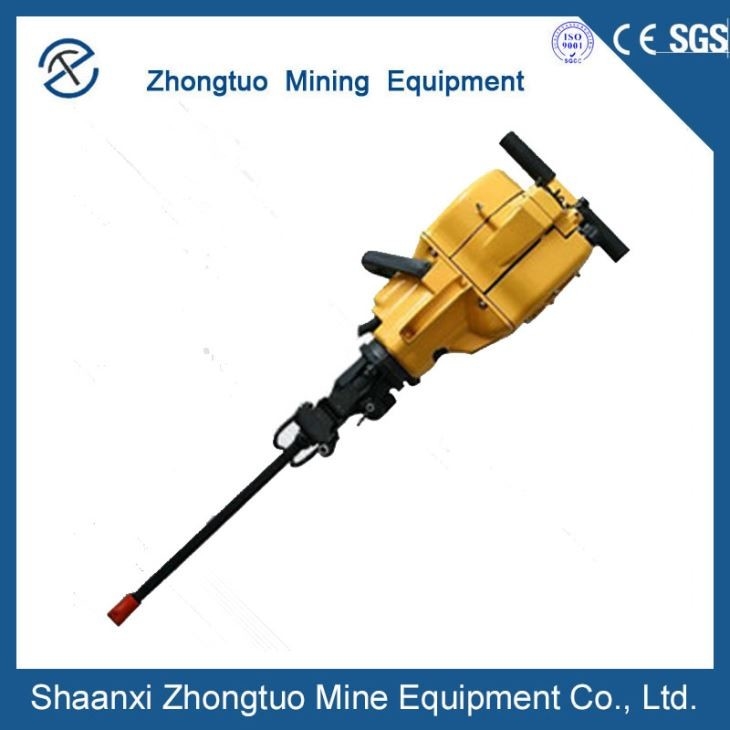

Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Working Principle of Portable Handle Yn27c Drilling Rig
The internal combustion rock drill is a new type of rock drilling machine powered by a low-power internal combustion engine (mostly a two-stroke gasoline engine), which is suitable for field operations without a power supply and air compressor. According to the work needs, in addition to the rock drilling operation, the internal combustion type rock drill is generally equipped with more than ten kinds of tools (such as grinding wheels, picks, shovels, shovels, etc.), which can be used for crushing, shoveling, digging, splitting, tamping and other operations.
Description of Portable Handle Yn27c Drilling Rig
Internal combustion rock drills are tools used to directly extract stone. It drills blast holes in rock formations so that explosives can be put in to blast the rock, so as to complete the mining of stone or other stonework. In addition, the rock drill can be converted into a breaker to break up hard layers such as concrete.
Technical of Portable Handle Yn27c Drilling Rig
| Weight | 27KG | Drilling diameter | 22mm | Piston stroke | 70mm |
| Size | 746*315*229mm | Drilling depth | 5m | Engine speed | >=2450r/min |
| Impact frequency | 34Hz | Drilling Speed | 5mm/min | Impact energy | >=25J |
1. Blast hole diameter is about 34m-42m, and the drill hole depth is 6m.
2. This kind of machine is a new kind of high-efficiency air-leg rock drill machinery.
3. It is suitable for drilling and blasting under various rocks and direction angles.
4. It is mainly used for blasting holes and other drilling works in quarries, railway construction, water conservancy construction, and defense project facility.
5. First-class level Drilling Tools, are suitable for sites without power or air pressure equipment, it has wide adaptability for high mountains and plains, and extreme temperature (±40ºC).
Causes of Oil Circuit Failure
The fuel used by the internal combustion rock drill is No. 70 gasoline and No. 15 gasoline engine lubricating oil. The two should be matched in strict accordance with the volume ratio of 12:1, and the fuel and fuel tank should be kept clean. When the machine fails, the first thing to check is the oil circuit. There are two reasons for too much oil intake: one is that the throttle needle valve is opened too much; the other is that the air filter is blocked by dust, the first check valve is too elastic or the throttle valve is opened too high.
