Highlight

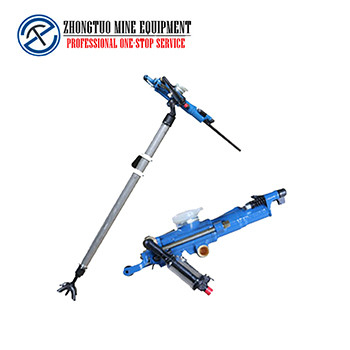

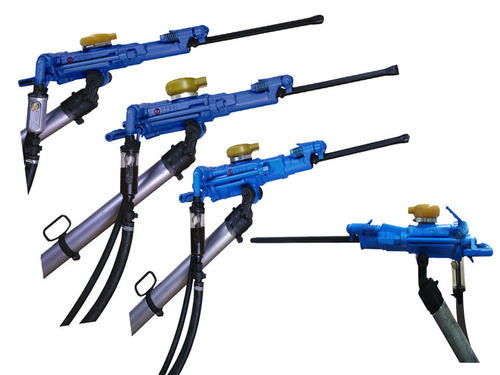

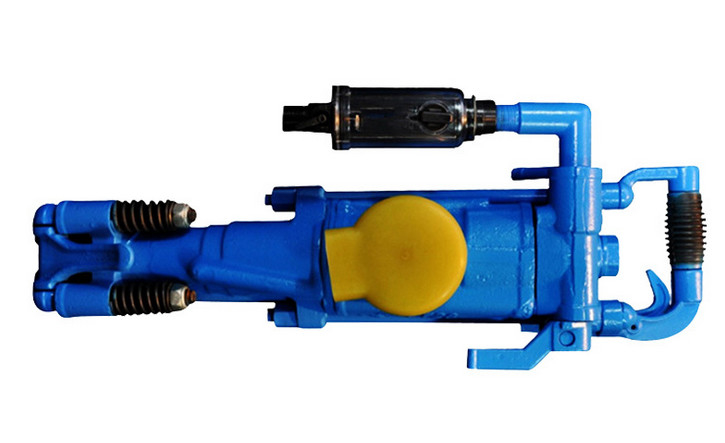

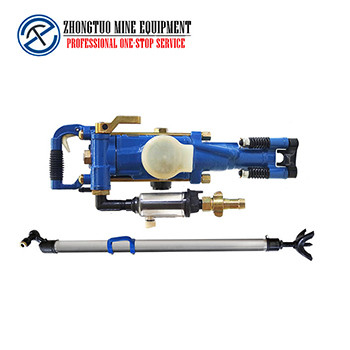

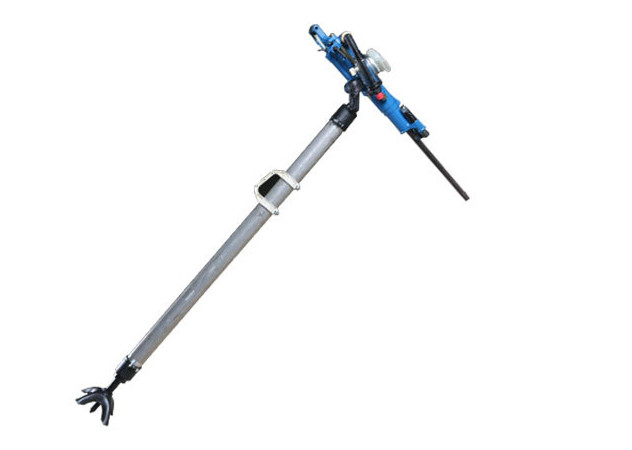

YT28 Handheld Air Leg Rock Drill
,5m Depth Air Leg Rock Drill
,YT28 Mine Pneumatic Rock Drill
-
Automatic GradeSemiautomatic
-
PowerPneumatic
-
Air Consumption3m3/Min
-
Transport PackageWooden Box
-
HS Code8430390000
-
Hole Diameter<50mm
-
Wind Pressure0.4-0.6MPa
-
Drilling Depth5m
-
After-sales ServiceTracking Guidance & Service
-
WarrantyOne Year
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberYT28
-
Minimum Order Quantity1PC
-
PriceUSD500-1000/PC
-
Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
Series of YT Rock Drill Description
Hand Held Rock Drilling Machine can be used to dig dry or wet by horizontal holes, vertical holes, or angling holes on medium-hard rock or hard rock. Widely used in mines, railway, irrigation, and quarry to drill holes and for the second digging holes.
Technical Parameters of YT Series Of Rock Drill
| Machine weight | 26 | kg |
| Cylinder diameter | 80 | mm |
| Piston stroke | 60 | mm |
| Working pressure | 0.5-0.6 | mpa |
| Impact frequency | ≥34 ≥37 | hz |
| Gas consumption | ≤55 ≤81 | l/min |
| Tracheal diameter | 25 | mm |
| Water pipe diameter | 13 | mm- |
| Drilling head diameter | 34-42 | mm |
| Drill tail size (hexagonal × length) | 22×108±1 | mm |
Application of YT Rock Drill
Application of YT Series Rock Drill :
They are applied for wet drilling and blasting in tunnels, road construction, and mining. It adopts the latest design technology, combined with high-quality forging spare parts and easy-handling air leg to win a high reputation in the global market. With the superiority of its high speed, low failure rate, durable wearing parts, low noise and lightweight, it has strong adaptability to different poor working conditions and reduces the customer loss for spare parts replacements.
YT Series Rock Drill Advantages:
YT28 Air Leg Rock Drill is a high-efficiency air leg rock drill machine, It is widely used for blasting holes and other drilling projects in quarries, railway construction, water conservancy construction, and defense project facility.
Features of YT Series Rock Drill
1. The gas distribution method of rock drill is a bowl-shaped gas valve, which is reasonable in layout and sensitive in
starting.
2. It has the advantages of light weight, fast rock drilling speed, low air consumption, small oscillation, convenient
operation, low failure rate, long life of parts, and good economic benefits.
3. The rock drill has a simple structure, and safety and is easy to operate.
