Stone Demolition Rock Splitter Stone Splitting Wedges Hydraulic Concrete Breaker
-
Highlight

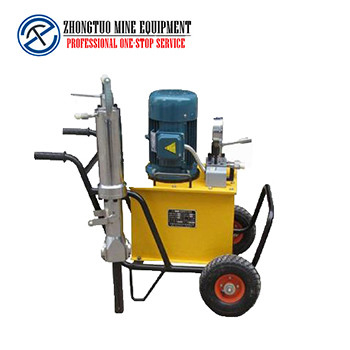

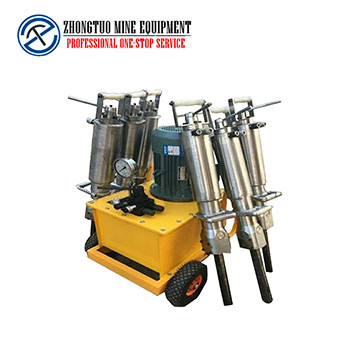

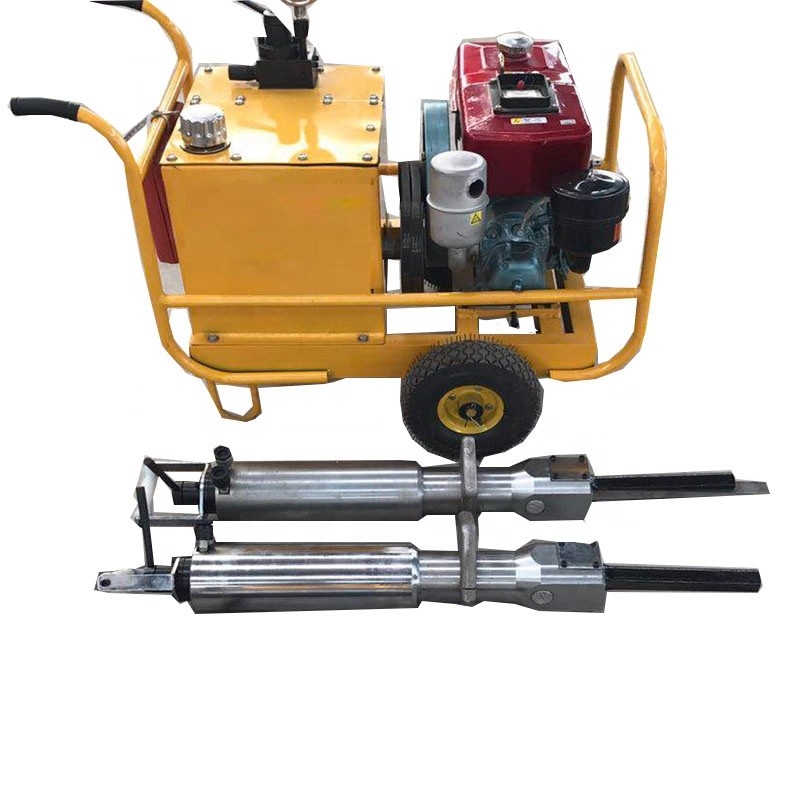

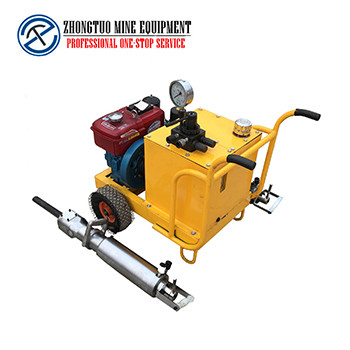

Stone Demolition Rock Splitter
,650mm Depth Stone Splitting Wedges
,CE ISO Hydraulic Concrete Breaker
-
PowerHydraulic
-
Drilling Depth(mm)450-650
-
Theoretical Split(T)800-840
-
OriginChina Shaanxi
-
BrandZHONGTUO
-
HS Code8467890000
-
After-sales ServiceTracking Guidance & Service
-
WarrantyOne Year
-
Place of OriginChina
-
Brand NameZHONGTUO
-
CertificationCE, ISO
-
Minimum Order Quantity1PC
-
Pricenegotiated
-
Packaging DetailsWooden Case
-
Delivery Time7-15days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
Stone Demolition Rock Splitter Stone Splitting Wedges Hydraulic Concrete Breaker
Working Theory of Stone Demolition Rock Splitter

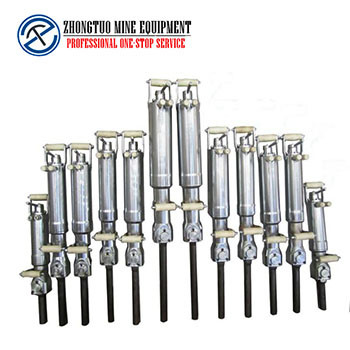

The splitting machine grasps the brittle characteristics of rock and concrete, and is designed using the principle of wedges - it can release a great splitting force outward in a narrow hole. The high-pressure oil output from the pump station drives the oil cylinder to generate huge thrust, and drives the middle wedge block in the wedge block group to drive forward and spread the reverse wedge block to both sides. Therefore, the splitting machine can easily split the boulders in a few seconds, so that the hard ore can be separated from the mountain.
Technical Parameter of Stone Demolition Rock Splitter
| Model | Drilling diameter(mm) | Drilling depth(mm) | Theoretical split(t) | Piston stroke (mm) | Splitting time | Wedge length(mm) |
| 250 | 40 | 450 | 800 | 90-200 | 10-15s | 250 |
| 350 | 42 | 550 | 820 | 90-200 | 10-15s | 350 |
| 450 | 50 | 650 | 840 | 90-200 | 10-15s | 450 |
Advantages of Stone Demolition Rock Splitter
1. Security: The hydraulic splitting machine uses the physical properties of hydraulic oil to be non-compressible and movable and adds static thrust to complete the task of static controllability.
2. Eco-friendly: There is no vibration, impact, noise, dust, or flying debris in the whole process.
3. Efficiency: machine completes one task within 10 -15 seconds with powerful splitting force (the rock-splitting tonnage can reach 840t), and can continue to work continuously with high efficiency.
4. Application flexibility: The splitting machine has a small volume, lightweight, and compact structure. It ensures that the application method is easy to learn, and just one person is required to operate it.
The Splitting Machine Components and Their Functions
The role of the hydraulic system is to increase the force by changing the pressure. A complete hydraulic system consists of five parts, namely power components, actuators, control components, auxiliary components (accessories), and hydraulic oil.
Hydraulic systems can be divided into two categories: hydraulic transmission systems and hydraulic control systems. The main function of the hydraulic transmission system is to transmit power and motion. The hydraulic control system needs to make the output of the hydraulic system meet specific performance requirements (especially dynamic performance). The hydraulic system usually refers to the hydraulic transmission system.
Application of Stone Demolition Rock Splitter
The hydraulic splitting machine is mainly used for tunnel excavation, underground prospecting, and excavation of rock bases, multiple splitting of extra-large rocks, granite, flint rock, quartzite, basalt, quartz porphyry, siliceous schist, sandstone, limestone, and marble. Dolomite, sedimentary rock, granite, pyrite iron, etc.
Demolition operations in indoor and narrow sites, demolition of reinforced concrete structures/plain concrete structures, foundations, walls, old bridge piles, chimneys, cut pile heads, and secondary block demolition of thick concrete slabs.
Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
