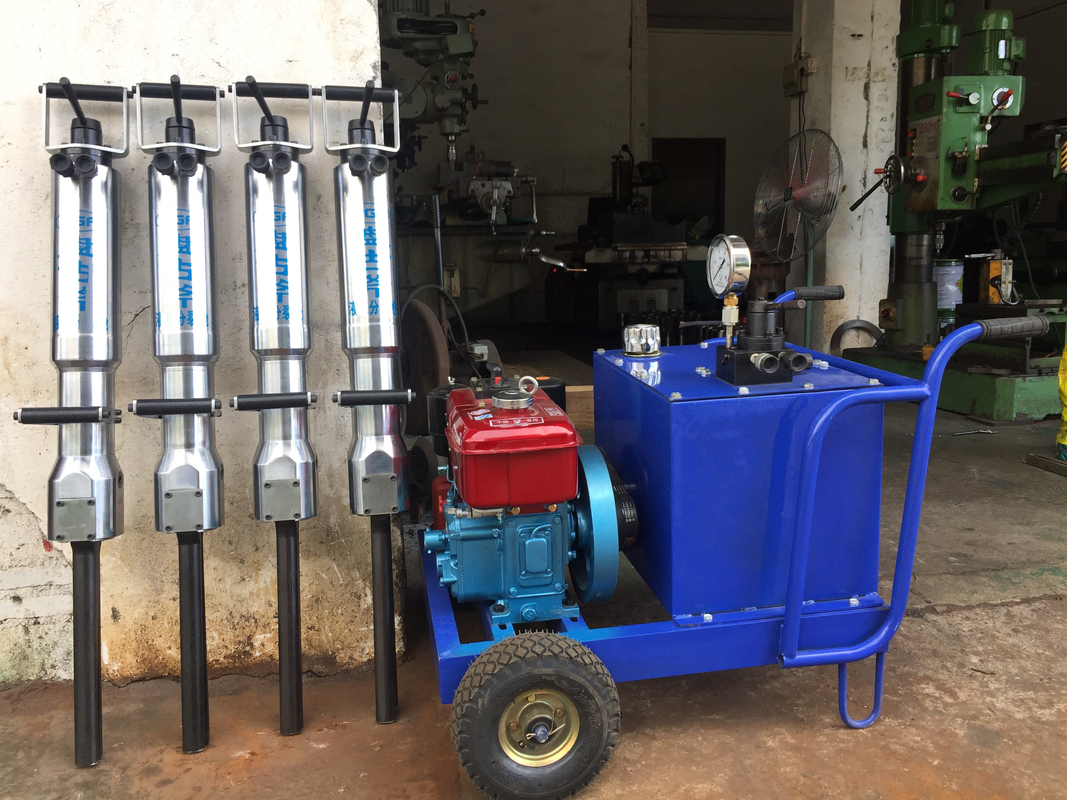

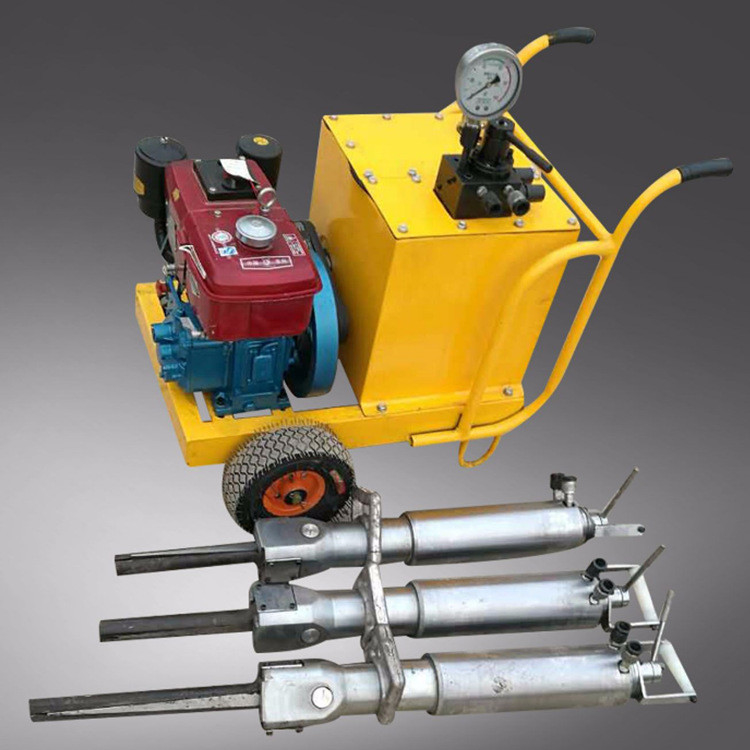

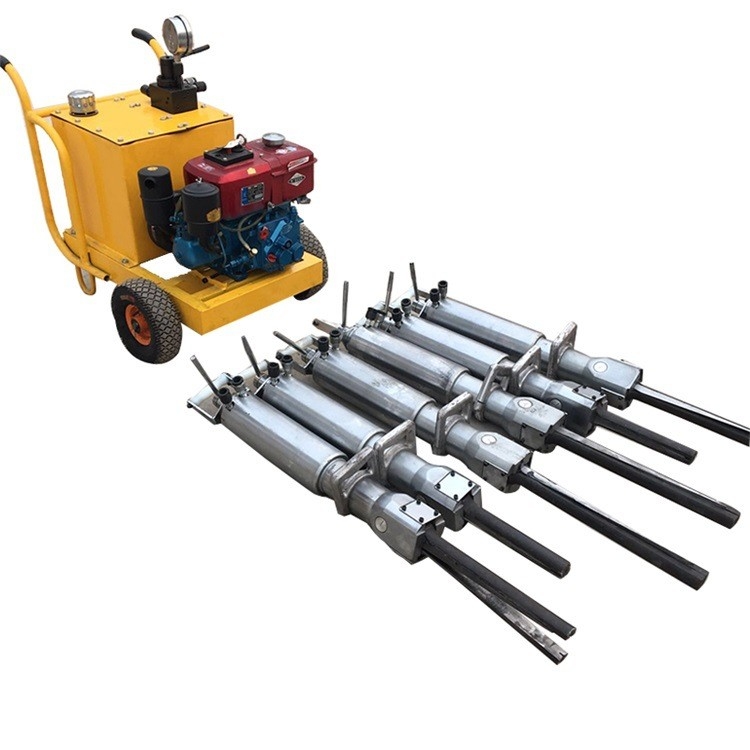

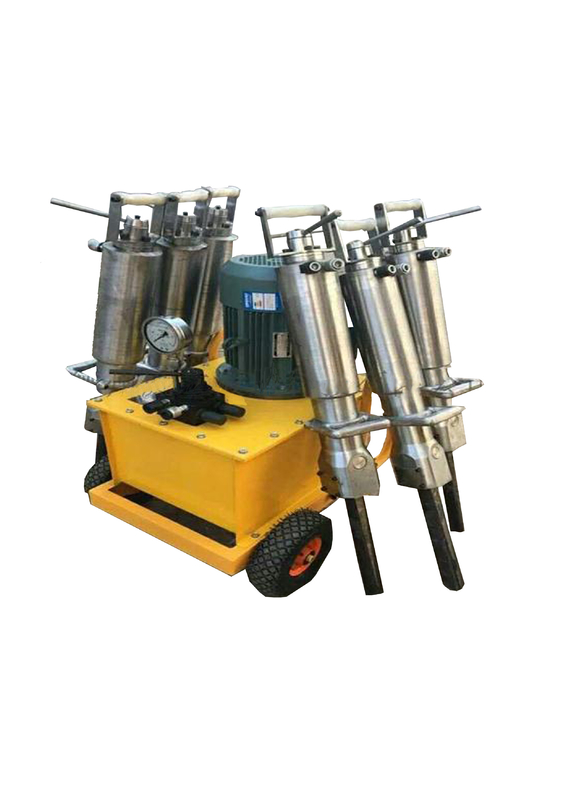

Dia 40mm To 50mm Mining Rock Splitter Machine Hydraulic Rock Drill Concrete Breaker

Working Theory of Hydraulic Rock Splitter

The splitting machine is designed by using the wedge principle to grasp the brittleness of rock and concrete - it can release great splitting force outward in a narrow hole. The high-pressure oil output from the pump station drives the oil cylinder to generate huge thrust, which drives the middle wedge in the wedge group to drive forward and stretch the reverse wedge to both sides. Therefore, the huge rocks can be easily split with a splitting machine in a few seconds, so that the hard ores can be separated from the mountains.

Technical Parameter of Hydraulic Rock Splitter

Features of Hydraulic Rock Splitter

1. Excavate stone for construction in the quarry, and use this equipment to obtain the ideal specification, size, and shape of the stone.
2. Mining, quarrying, or excavating foundations in the surrounding areas of the city and apartment complexes, the use of this equipment has no flying stones, smoke, and noise, no vibration, and can maintain a good construction environment.
3. Dig subway tunnels and platform caves under urban buildings to protect ground buildings.
4. In the construction of highways and railways, trenches can be constructed by the roadside without affecting the normal passage of vehicles.
5. In the demolition of reinforced concrete buildings, there is no sand and gravel flying, no vibration and noise, and a peaceful construction environment can be maintained.

The Hydraulic Rock Splitter Components and Their Functions

The role of the hydraulic system is to increase the force by changing the pressure. A complete hydraulic system consists of five parts, namely power components, actuators, control components, auxiliary components (accessories), and hydraulic oil.

Hydraulic systems can be divided into two categories: hydraulic transmission systems and hydraulic control systems. The main function of the hydraulic transmission system is to transmit power and motion. The hydraulic control system needs to make the output of the hydraulic system meet specific performance requirements (especially dynamic performance). The hydraulic system usually refers to the hydraulic transmission system.

Application of Hydraulic Rock Splitter

1. Stone or excavation foundations in the surrounding areas of the city and apartment buildings, the equipment does not fly stones, smoke, and noise has no vibration, and can maintain good construction c. The excavation of underground and platform embankments under urban buildings can protect the land buildings
2. In highway and railway construction, ditch construction can be carried out on the road without affecting the normal traffic of vehicles.
3. In the demolition of reinforced concrete buildings, there is no sand and stone flying, no vibration or noise, and a peaceful structure can be maintained.
4. Foundations and walls can be removed from buildings and buildings without affecting the building.
5. Remove the battery head at the bridge structure and discard the old bridge underwater.
6. In national defense construction, excavate large shelters, such as underground oil reservoirs, underwater oil reservoirs, and hangars, because there is no vibration sound, smoke flying stones, etc.

Entire Service

We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
