Highlight
Renovation Work Rock Splitter Machine
,800Ton Rock Splitter Machine
,Quarry Breaking hydraulic stone splitter
-
PowerHydraulic
-
Drilling Depth(mm)450-650
-
Theoretical Split(T)800-840
-
OriginChina Shaanxi
-
HS Code8467890000
-
After-sales ServiceTracking Guidance & Service
-
WarrantyOne Year
-
Place of OriginChina
-
Brand NameZHONGTUO
-
CertificationCE, ISO
-
Minimum Order Quantity1PC
-
Pricenegotiated
-
Packaging DetailsWooden Case
-
Delivery Time7-15days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram

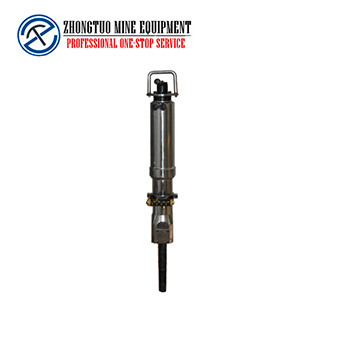

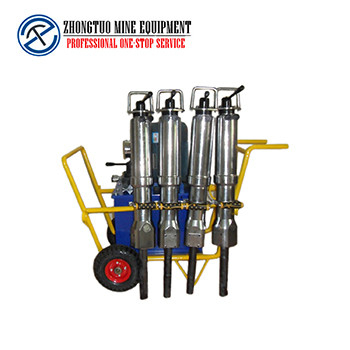

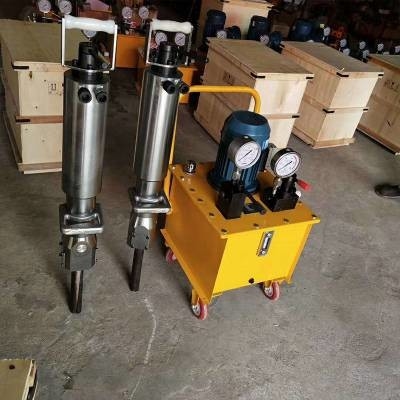

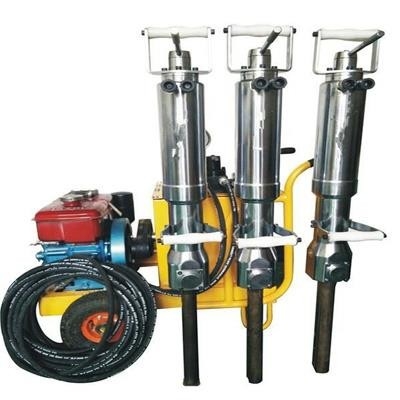

800 Ton Renovation Work Rock Splitter Machine For Quarry Breaking
Working Theory of Stone Demolition Rock Splitter
The hydraulic splitting machine uses the high-pressure hydraulic oil generated by the power station as the energy source, which is transported to the cylinder pipes of each splitting machine (also known as splitting gun and splitting machine) through the oil pipe to control the push and retraction of the piston rod in the splitting machine, and cleverly applied the principle of the wedge, so that the rock splitting force can reach hundreds of tons or even thousands of tons. Any object has its own characteristics. Rock and concrete have extremely high external compressive strength, and from the inside, to the outside, their tensile strength is very small, and their compressive and tensile strength are different in hydraulic pressure, and it is in a brittle state.
Technical Parameter of Stone Demolition Rock Splitter
| Model | Drilling diameter(mm) | Drilling depth(mm) | Theoretical split(t) | Piston stroke (mm) | Splitting time | Wedge length(mm) |
| 250 | 40 | 450 | 800 | 90-200 | 10-15s | 250 |
| 350 | 42 | 550 | 820 | 90-200 | 10-15s | 350 |
| 450 | 50 | 650 | 840 | 90-200 | 10-15s | 450 |
Advantages of Stone Demolition Rock Splitter
1. Environmental protection: When the hydraulic splitter works, there will be no vibration, impact, noise, dust flying debris, etc., and the surrounding environment will not be affected. Work without interruption, even in densely populated areas or indoors, and near tight equipment.
2. Economy: The hydraulic splitting machine can complete the splitting process in a few seconds and can work continuously without interruption, with high efficiency; its operation and maintenance costs are very low;
There is no need for isolation or other time-consuming and expensive safety measures like blasting operations.
3. Usability: The user-friendly use design and durable structure design of the hydraulic splitter ensure that its use method is simple and easy to learn, and only needs one person to operate.

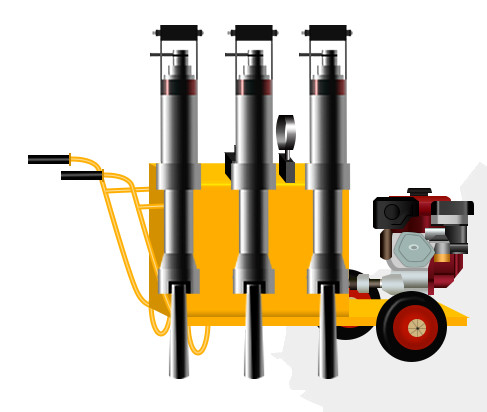

The Splitting Machine Components and Their Functions
The role of the hydraulic system is to increase the force by changing the pressure. A complete hydraulic system consists of five parts, namely power components, actuators, control components, auxiliary components (accessories), and hydraulic oil.
Hydraulic systems can be divided into two categories: hydraulic transmission systems and hydraulic control systems. The main function of the hydraulic transmission system is to transmit power and motion. The hydraulic control system needs to make the output of the hydraulic system meet specific performance requirements (especially dynamic performance). The hydraulic system usually refers to the hydraulic transmission system.
Application of Stone Demolition Rock Splitter
The splitting machine is suitable for the mining of rocks of various textures, will not produce vibration, noise, dust, etc. during the work, and can realize silent mining without affecting the surrounding. It only takes a few seconds to rupture once, and it is a fast and fast mountain-making machine, such as the mining of marble, granite, bluestone, silica, calcite, and other stones.
Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
