Highlight
Reliable Drilling Rig Machine
,14.5 Bar Compact Screw Compressor
,Small Wheel Compact Screw Compressor
-
ConfigurationPORTABLE
-
Lubrication StyleLubricated
-
Weight2280kg
-
Working Pressure14.5 Bar
-
Core ComponentsEngine, Gearbox, Other
-
Rated FAD11m³/min
-
Diesel EngineYUCHAI
-
Model Number110SCY-14.5
-
Rated CFM390
-
Maintenance Lubricants Capacity45L
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberZTMG70
-
Minimum Order Quantity1PC
-
PriceUSD10000-22000/PC
-
Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days

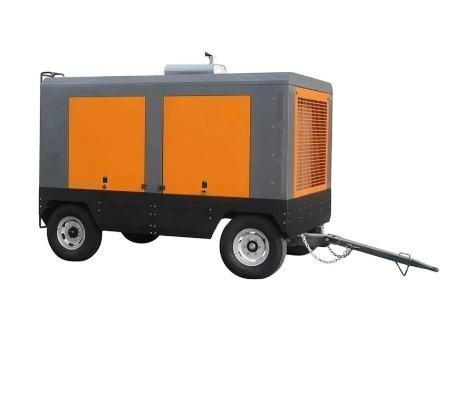

Compact Energy-Efficient Screw Air Compressor
Main Features Of 14.5bar Small Wheel Compact Screw Compressors For 80-110mm DTH Drill Rig
1)Greater fuel efficiency and energy saving
2) Air filtration system with vacuum indication for dust environments
3) Compressor oil and engine coolant coolers to optimize performance and extend engine life
4) Efficient compressor oil filter
5) Fuel filter with water separator
6)Easy to remove, translucent PE fuel tank
Product Parameters of Small Wheel Compact Screw Compressors
|
Model
|

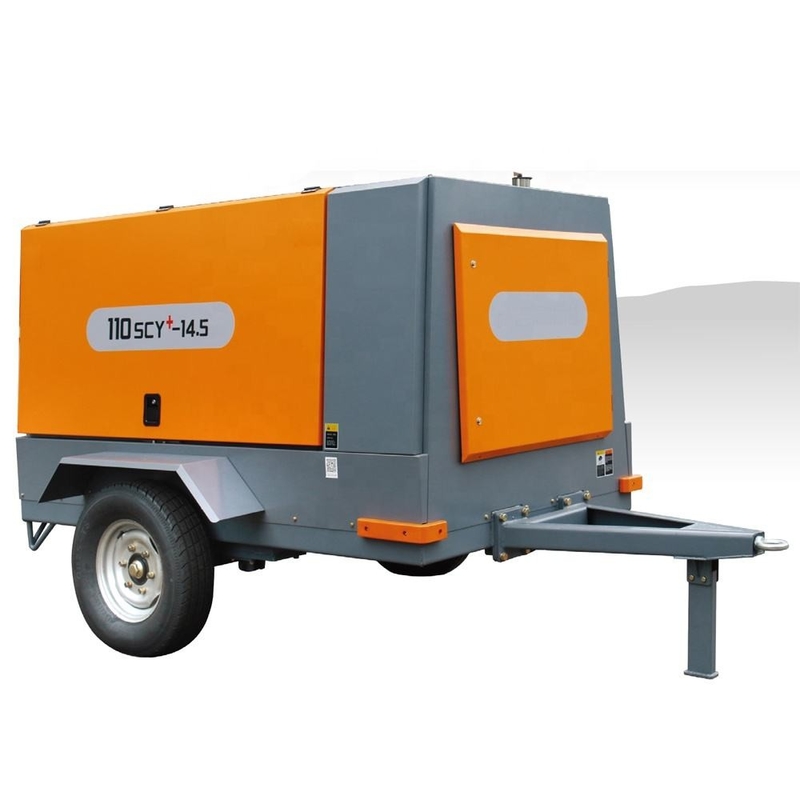

110SCY⁺-14.5
|
|
Type
|
Single Stage Compression
|
|
Rated FAD
|
11m³/min
|
|
Rated CFM
|
390
|
|
Rated Pressure
|
14.5 bar
|
|
Diesel Engine Electric Motor
|
YUCHAI
|
|
Lubricants Type
|
B
|
|
Maintenance Lubricants Capacity
|
45L
|
|
Power
|
118KW
|
