Highlight
Diesel Engine Well Drilling Rig Machine
,CE ISO Drilling Rig Machine
,360 Degree Rotary Drill Rig
-
Drilling Depth100-200（m）
-
Weight362（kg）
-
ModelZSJD-100/120/150/200
-
Drilling Angle Range360（°）
-
Broken WayRotary Drill
-
Drilling Diameter120-150（mm）
-
Applicable Voltage220V/380V
-
After-sales ServiceTracking Guidance & Service
-
WarrantyOne Year
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE ISO
-
Model NumberZTJD100/150/180
-
Minimum Order Quantity1PC
-
PriceUSD2500-3000/PC
-
Packaging DetailsWooden Case
-
Delivery Time7-15 Work Days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram

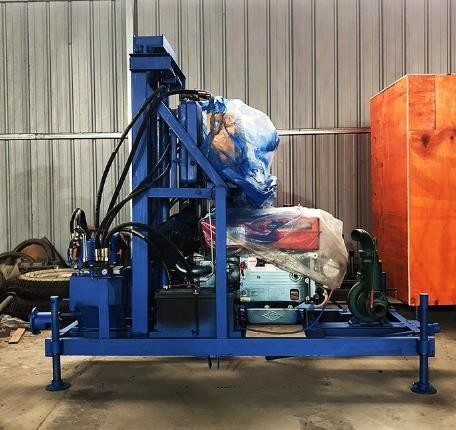

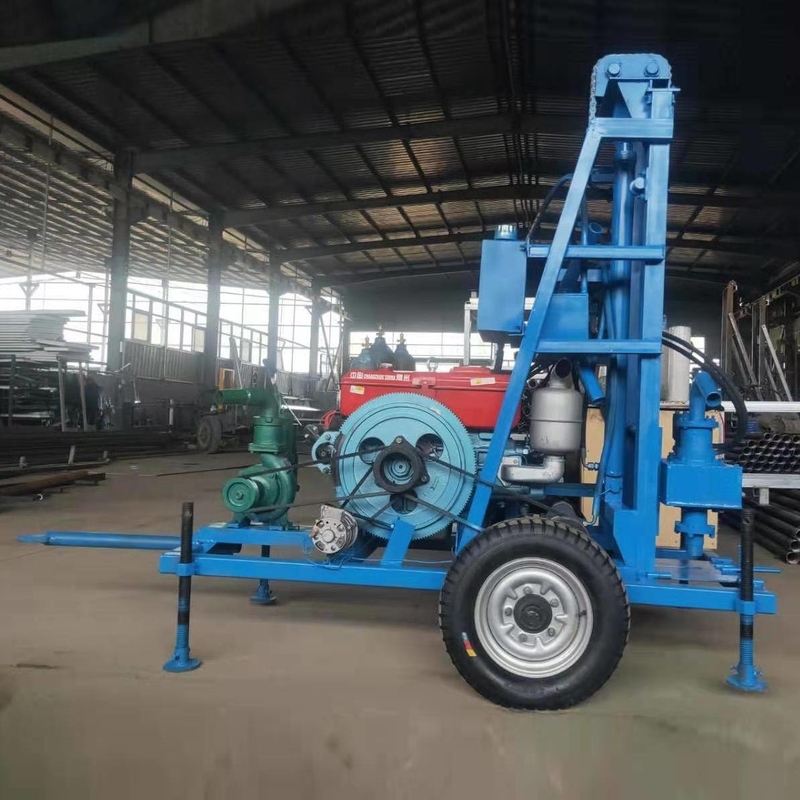

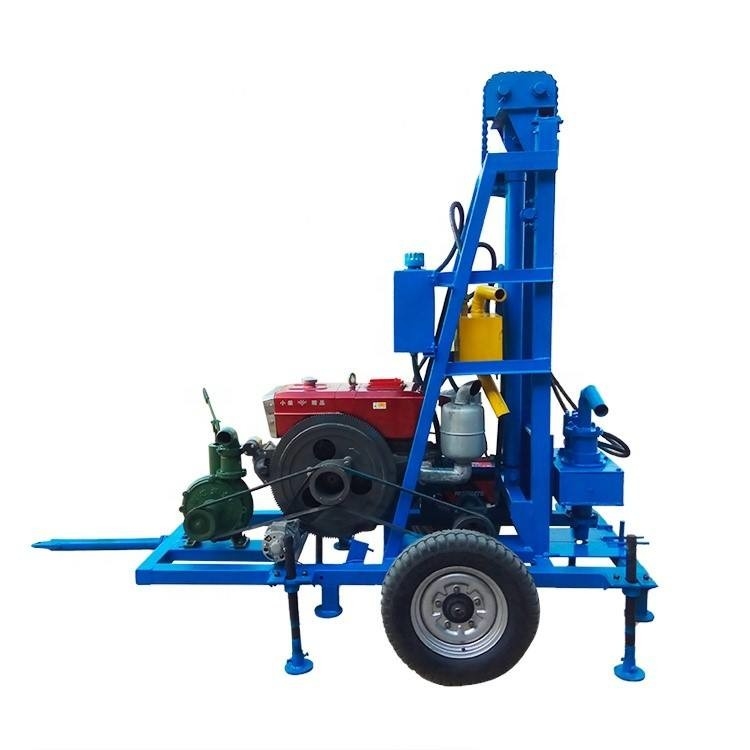

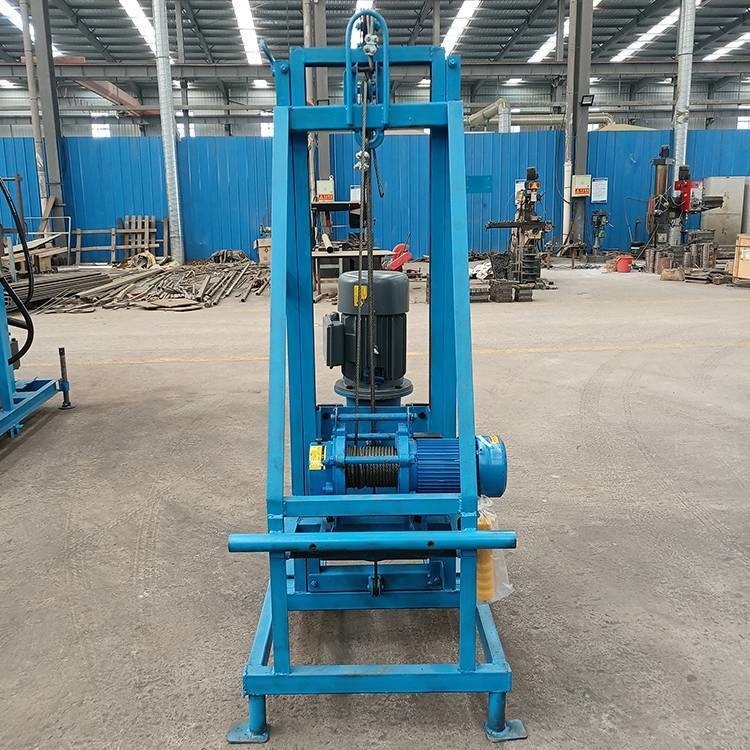

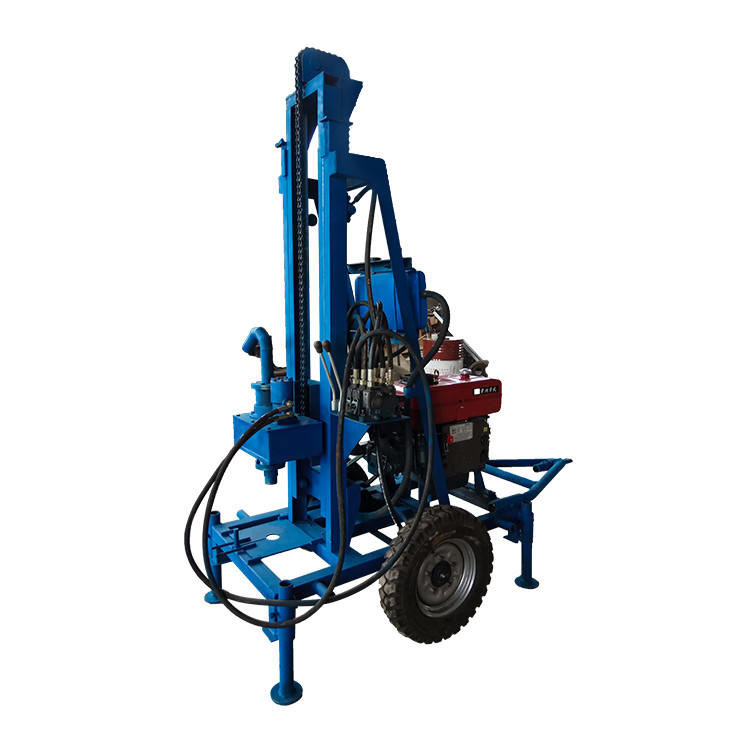

Diesel Engine Well Drilling Rig Machine 360 Degree Rotary Drill Rig
Description of Water Well Drill Machine
This water well drilling machine mainly applies to geothermal drilling, farm irrigation, house yard, gardens, water well drilling, and drilling, etc, it can drill 70-450mm diameter, at Max 200m depth, It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm, it can apply to different stratum, such as sand, soil, clay, soft rock and so on.
Parameters of Water Well Drill Machine
| Rig model | ZSJD-100 type | Motor Power | 4000W |
| Drill pipe diameter | 4.2mm | Drilling and crushing method | Impact Rotary |
| Dimensions | 80cm*80cm*245cm | Drilling depth | 100-200M |
| Drill pipe length | 1.5m | Pump power | 2.2KW |
| Rig weight | 200KG | Drilling diameter | Within 400mm |
| Drill pipe replacement method | Thread button (automatic double thread) | Machine Height | 2 meters |
| Applicable voltage | 220V/380V | Force | 1000KG |
| Rig model | ZTJD-150 type | Motor Power | 4000W |
| Drill pipe diameter | 50mm | Drilling and crushing method | Impact Rotary |
| Dimensions | 90cm*90cm*245cm | Drilling depth | 100-200M |
| Drill pipe length | 1.5m | Pump power | 2.2KW |
| Rig weight | 250KG | Drilling diameter | Within 400mm |
| Drill pipe replacement method | Thread button (automatic double thread) | Machine Height | 2 meters |
| Applicable voltage | 220V/380V/ Gasoline / Diesel |
Force | 2000KG |
| Rig model | ZTJD-180 type | Motor Power | 4000W |
| Drill pipe diameter | 50mm | Drilling and crushing method | Impact Rotary |
| Dimensions | 100cm*100cm*245cm | Drilling depth | 100-200M |
| Drill pipe length | 1.5m | Pump power | 2.2KW |
| Rig weight | 290KG | Drilling diameter | Within 500mm |
| Drill pipe replacement method | Thread button (automatic double thread) | Machine Height | 2 meters |
| Applicable voltage | 220V/380V/ Gasoline / Diesel |
Force | 2000KG |
Features of Water Well Drill Machine
This water well drilling machine mainly applies to geothermal drilling, farm irrigation, house yard, gardens, water well drilling, and drilling, etc, it can drill 70-450mm diameter, at Max 200m depth, It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm, it can apply to different stratum, such as sand, soil, clay, soft rock and so on.
Application of Cheap Borehole Drilling Machine /Water Well Drilling Rig for Sale 200m:
The small drilling equipment is suitable for various terrains. The machine is easy to use, simple to operate, fast to form holes, about 10 meters per hour, low noise, extremely easy to operate, and can be operated by a single person. Taking a 100-meter one-way well as an example, it takes about 10 minutes on average to disassemble the drill pipe, and it is easy to move. After the well drilling operation is completed, a single operation can complete the moving work.
Small electric well drilling rigs are widely used in home drilling, factory drilling, taking domestic water, irrigation wells in farmland, installing water air conditioners, solar water heaters, piling on construction sites, etc. Power supply: two-phase 220V motor and three-phase 380V motor, adjustable speed, forward and reverse.
Our products are sold all over the world, you can rest assured.
