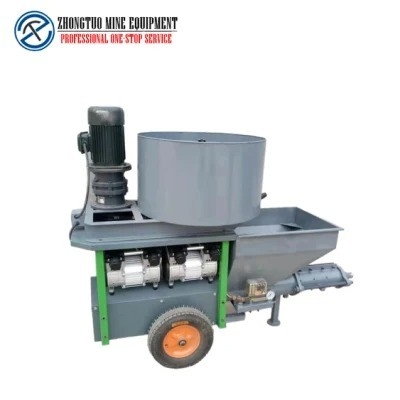

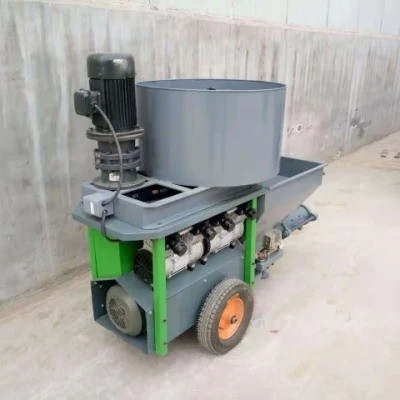

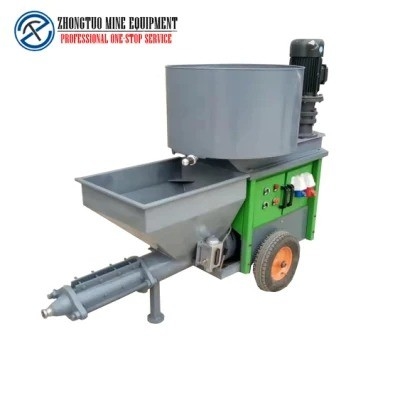

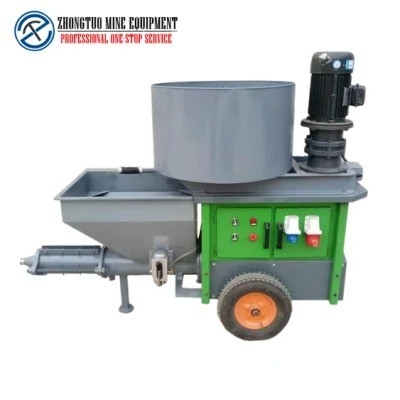

Mortar Sprayer Multifunctional Powder Wall Cement Machine With Mixer

Mortar Sprayer Multifunctional Powder Wall Machine With Mixer For Interior And Exterior Walls

Technical Parameters of Construction Mortar Cement Spraying Machine

Product Description of Construction Mortar Cement Spraying Machine

The mortar spraying machine basically has no floor ash, saves water and materials, can greatly reduce costs, and is easy to operate. Spraying, wall spraying, paint spraying, garden spraying, relief effect paint. With the enhancement of people's awareness of environmental protection in our country, it is your inevitable choice to choose a multi-functional small mortar sprayer. The mortar sprayer industry has gradually got rid of various unfavorable factors and obstacles, and has made great development and progress. There is room for future development. huge. There were certain obstacles in the development of mortar spraying machines, especially in the open and competitive modern market, to ensure the production of high-quality mortar spraying machines and improve the efficiency and performance of mortar spraying machines. Make the mortar spraying machine realize technology and modernization to meet the developing market demand. In the face of these problems, mortar spraying machine manufacturers should calmly analyze the market, improve production efficiency and reduce production costs. pulp. During the construction of the new product, the artificial powder wall mode was replaced, which improved the construction efficiency of the overall project. According to the construction experience and actual needs, the requirements for the mixing time of different types of plastering mortar are given, and the structure is basically stable. In order to ensure the construction quality of plastering mortar, it is required to design the mix ratio according to this regulation before construction, increase the investment of manpower and material resources, and take the actual needs of manufacturing enterprises as the guide, in-depth research and continuous improvement of the application of machinery manufacturing and automation technology, so that my country's machinery The manufacturing industry is at a high level, and the Chinese construction market is developing continuously. High-speed cement mortar spraying machines are used in buildings, subways, tunnels and other underground engineering deformation joints, construction joints, and structural cracks to plug leakage.

Operation of Construction Mortar Cement Spraying Machine

1. Before starting the cement mortar spraying machine, press the hand oil pump several times to inject oil into the transmission part.
2. After turning on the power, first power the main motor to check whether the rotation direction of the rubber screw is consistent. If it is inconsistent, replace the power phase wire (this check should be carried out every time the power is reconnected).
3. Connect the conveying hose and nozzle, add 5L of clean water to the hopper, start the motor to pump out the clean water to wet the hopper, pump the body and conveying hose, and stop after most of the water is pumped out.
4. Start the air compressor first, open the air valve, and add putty or paint into the hopper to start spraying.
5. It is strictly forbidden to idle in the hopper without material or water.

Maintainance of Construction Mortar Cement Spraying Machine

1) Inspection and maintenance before the operation
1. Electrical equipment: including the inspection of motors, power supply, and transmission lines, and electric control boxes, and each switch should be in the specified state.
2. Lubricating oil: The hand oil pump is forced to refuel several times.
3 Check the hopper for debris and slag.
4 Inspection of shotcrete hoses, nozzles, and air ducts.
5 Equipment Air Transport Inspection
a Jog the motor to check the rotation direction (the main motor is clockwise and the air compressor is counter-clockwise);
b Air compressor, air pressure, air volume, air gun adjustment;
c Check the situation of the instrument, especially whether the voltage meets the design requirements (380v), check the transmission line, wire diameter distance and joint connection, etc.
6 The setting of air pressure and airflow is due to the loosening of the air pressure switch parts during transportation, and the pressure spring should be readjusted.
(2) Inspection and maintenance in shotcrete operation
1. Electrical equipment checks whether the temperature of each instrument, button, air pressure switch, ball gate and the motor is normal.
2. The spray hose, nozzle, and air duct are all sealed and fixed. Air and shotcrete pipes must be free of knots and signs of breakage.
3. Air duct system: Check joint sealing, fixation, air pressure, air volume and working conditions, etc.
(3) All bolts, nuts, and screws should be checked frequently for looseness and should be tightened in time if looseness is found (especially the bolts of the electric control box)
(4) Maintenance after the operation
1. Cleaning and inspection of grouting hoses, air ducts, and nozzles
2. Equipment cleaning and inspection
3. Air compressor. Cut off the power supply, and air source, close all valves, and check all parts.
4. Cut off the power supply of the electrical part and check all parts.
5. Remove the booster nails and rotor, and reassemble them after cleaning.
6. Other problems found during operation, cleaning, maintenance, etc.
