Highlight
Intelligent Grout Mixers Pumps
,Cement Grout Pump Mixer
,Cylinder Type Grout Cement Mixer
-
Model NO.ZT40-JD
-
StructureCylinder Type
-
Productivity240m²/h
-
Feeding Height1400mm
-
Vibrating Amplitude2.6mm
-
ConditionNew
-
ColorOrange
-
High Speed For Mixing Section1020rpm
-
Motor7.5kw
-
Volume0.66 Cubic Meters
-
Transport PackageWooden Box
-
Specification4 Cubic Meters
-
TrademarkZhongtuo
-
OriginChina
-
HS Code8716800000
-
Supply Ability50piecces/Month
-
Shipping CostTo Be Negotiated| Freight Cost Calculator
-
TypeConcrete Mixer
-
Shotcrete TypeWet
-
Machining ProcessFeeding,Mixing And Pump
-
CertificationCE

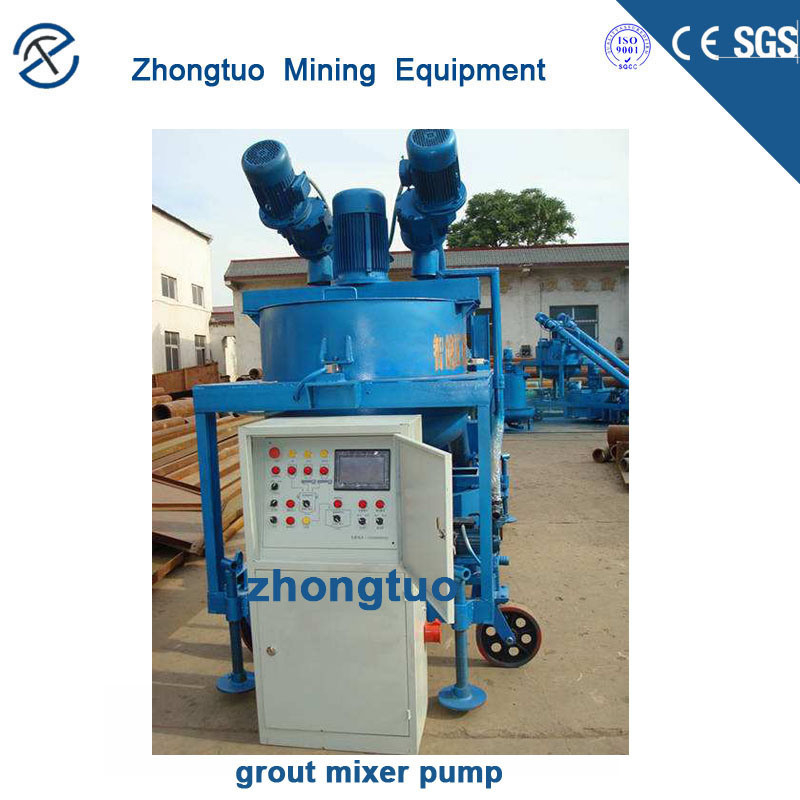

Intelligent Colloidal Grout Mixers Pumps For Cement
Product Description
Company Info.
Basic Info.
Product Description

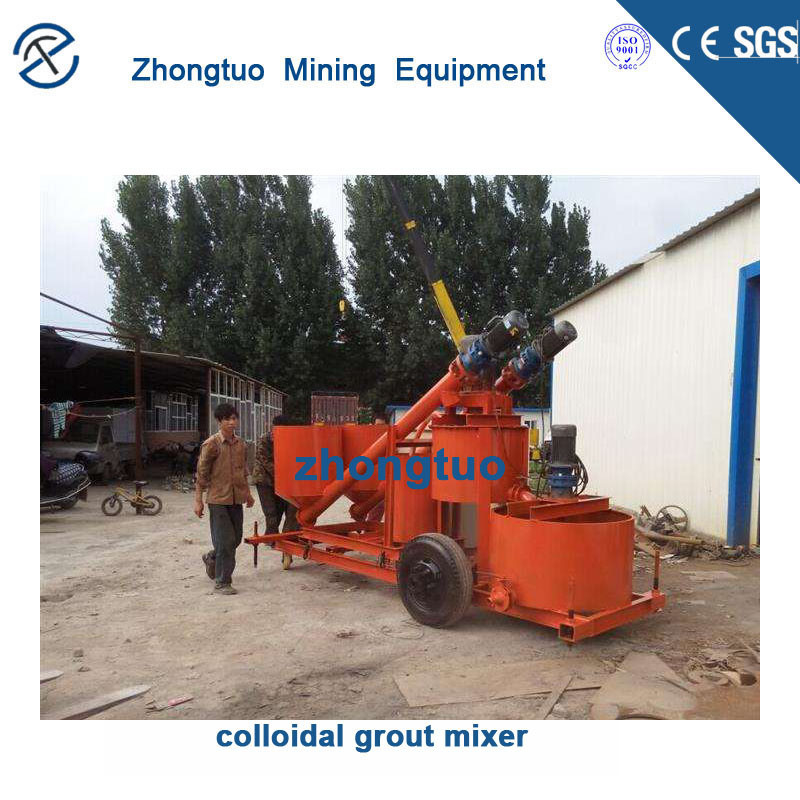

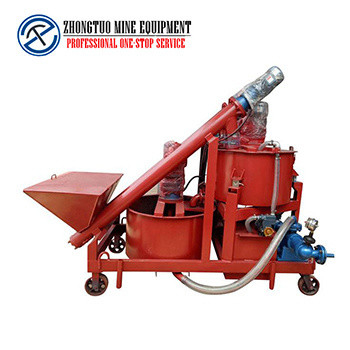

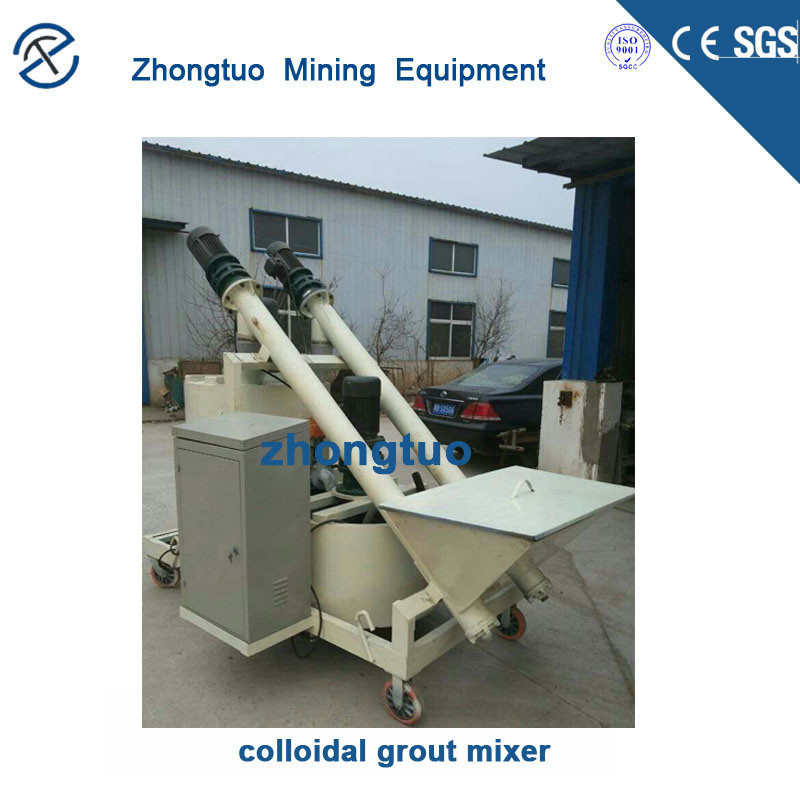

Description of Colloidal grout mixers & pumps:
Colloidal Grout Mixers are internationally recognized as the most efficient method of mixing cement-based grouts and other materials used in the construction industry, resulting in very stable mixes which resist bleed and contamination by water. The unique mixing action allows rapid mixing of grouts containing sand, up to a sand/cement ratio of 4:1, and neat cement grouts with water/cement ratios as low as 0.36:1 without additives, or lower with plasticizers or superplasticizers. The mixers are also very efficient at mixing bentonite and other clay products as the process accelerates hydration and makes a more stable product.
The range of mixers as detailed cater for outputs from 2.5 to 40 cubic meters per hour as batch mixers, dependent upon mix design and material feed rates. The larger mixers may be fitted with weighing facilities which, in conjunction with automatic control, allow materials to be accurately batched in by weight.

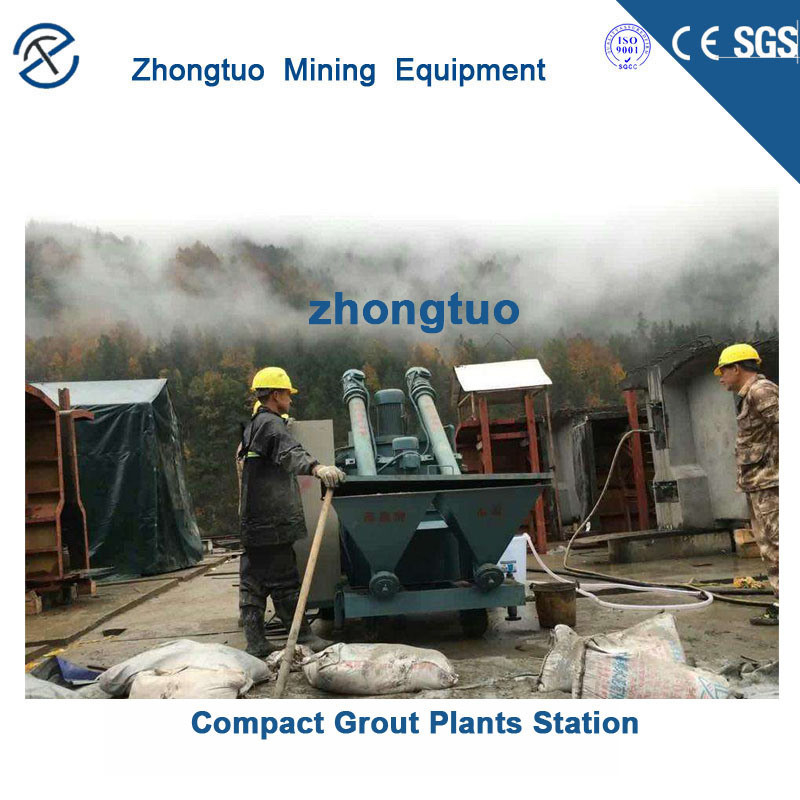

Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.
The mixed product is discharged from the mixer at pressures up to 2 bar and rates up to 700 liters per minute for each mixer unit.
Parameter:
| colloidal grout mixer | |
| The high speed mixing section | 1020rpm |
| speed of agitator | Better than 1% |
| measuring accuracy | 0.42m cube |
| Charge capacity | 200-400 |
| Single mixing amount | 7.5kw |
| Mixed Motor | 7.5kw |
| Low-speed stirring | |
| speed of agitator | 72rpm |
| Reservoir volume | 0.66 cube |
| Material storage motor | 3000w |
| Water pump motor model | 40JDB-12 |
| mud jack pump | Supporting |
| Walking wheel specifications | 520-16 |
| Maximum drag speed | 10km/h |
FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.
Q2: What is the exact address of your factory?
A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your requirements.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long will it take to arrange production?
A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
Our Company Information:
We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience in mining equipment, main products include:
Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

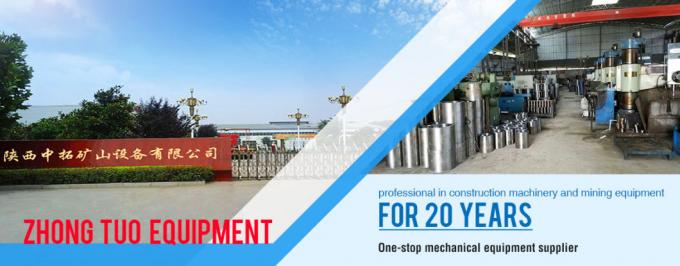

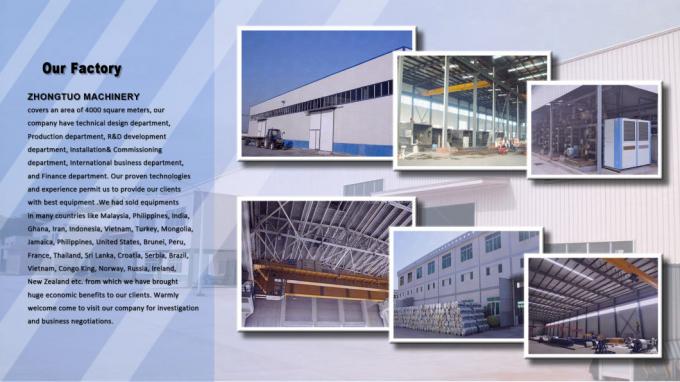

About Our Factory:
About the products:
Packing and Shipping:

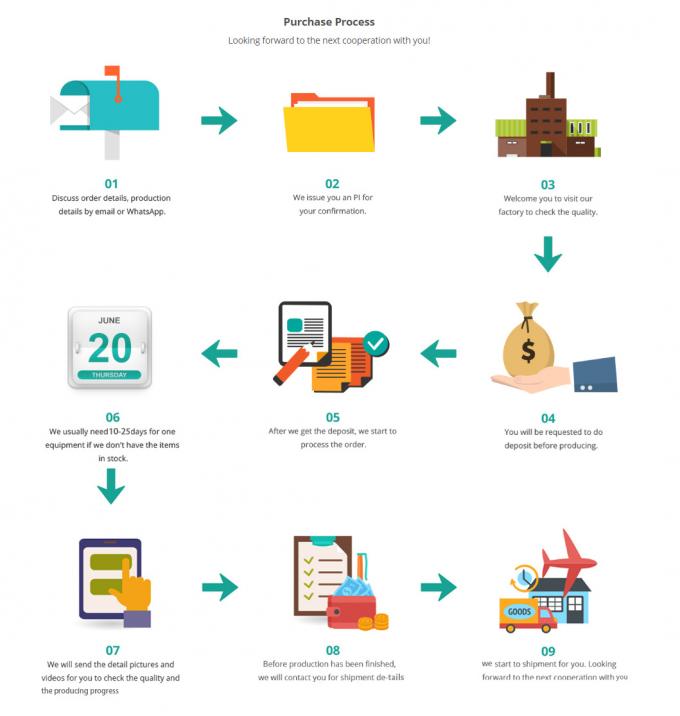

Purchase Process:

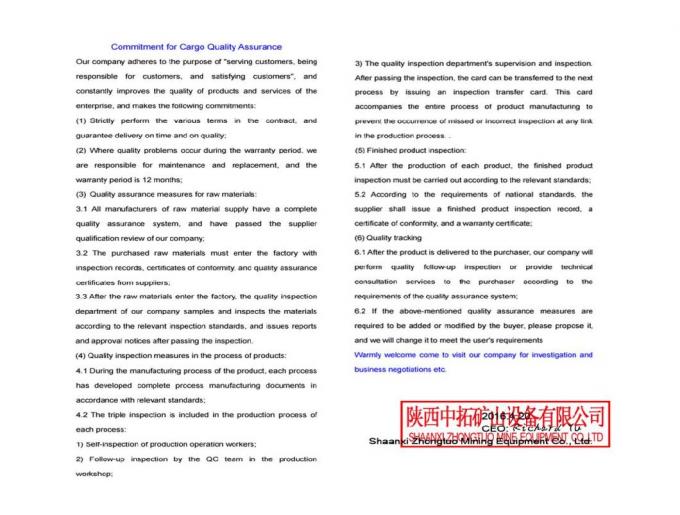

About the Quality:
Others:
Why you choose us:
1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
Our products are sold all over the world, you can rest assured.
