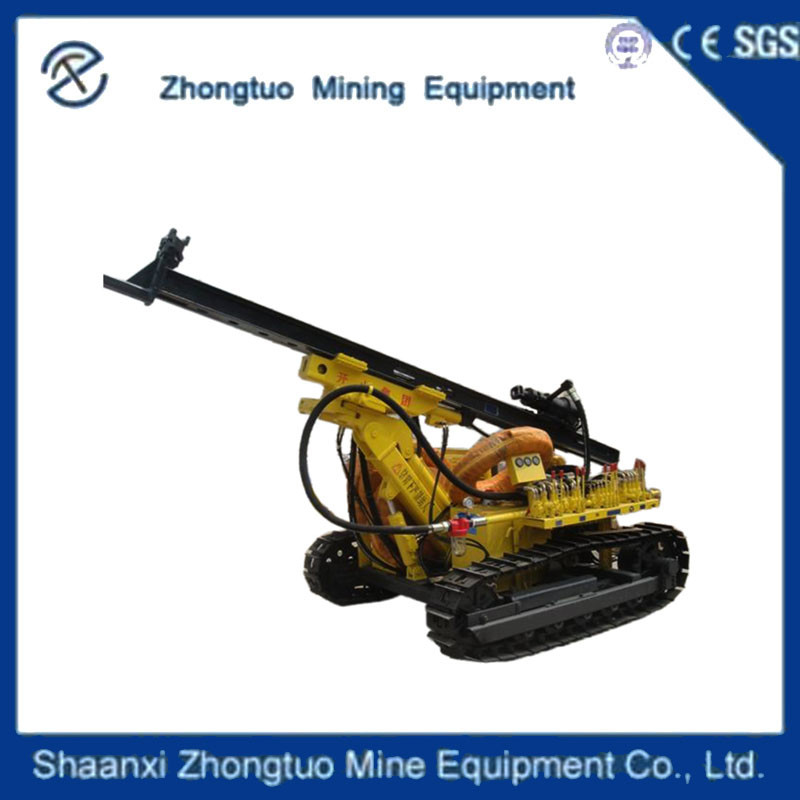

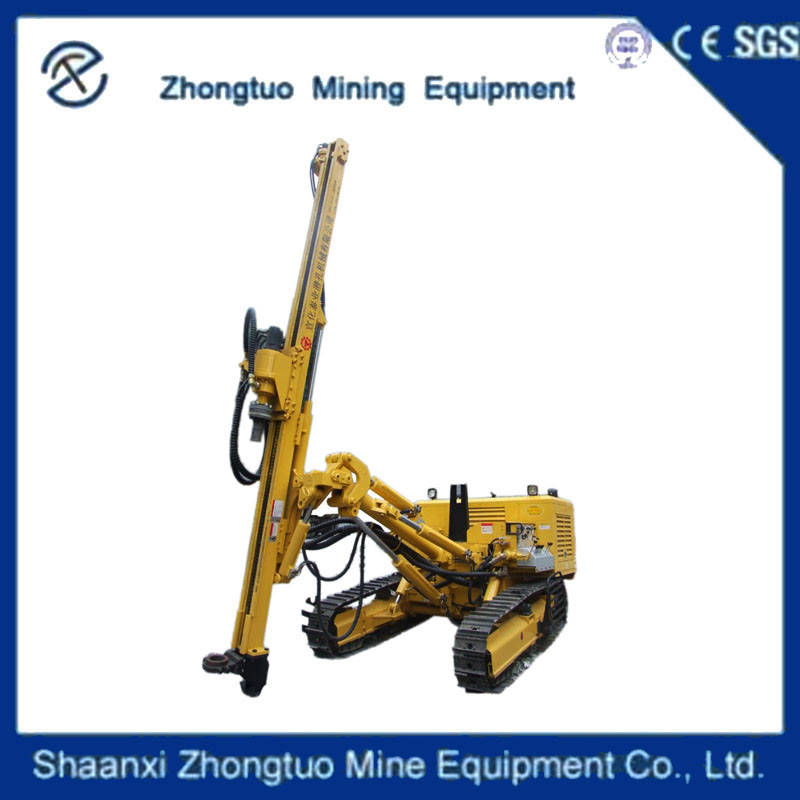

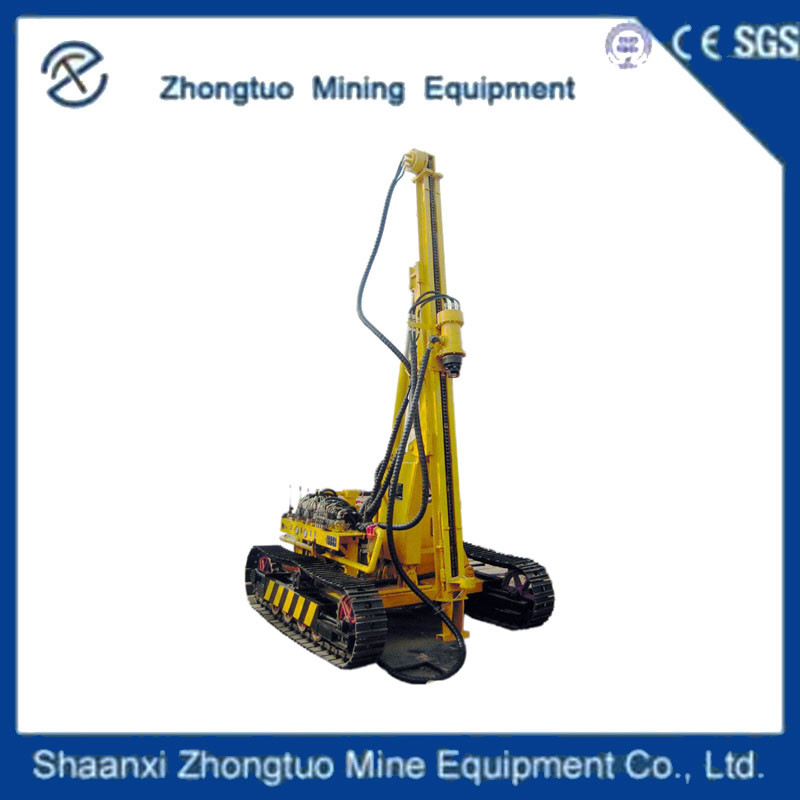

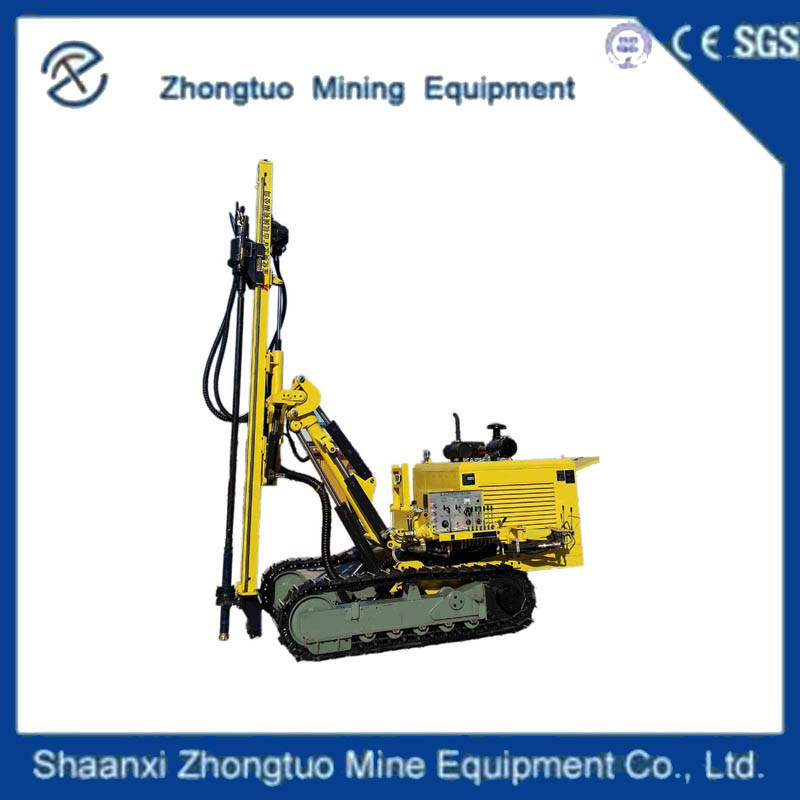

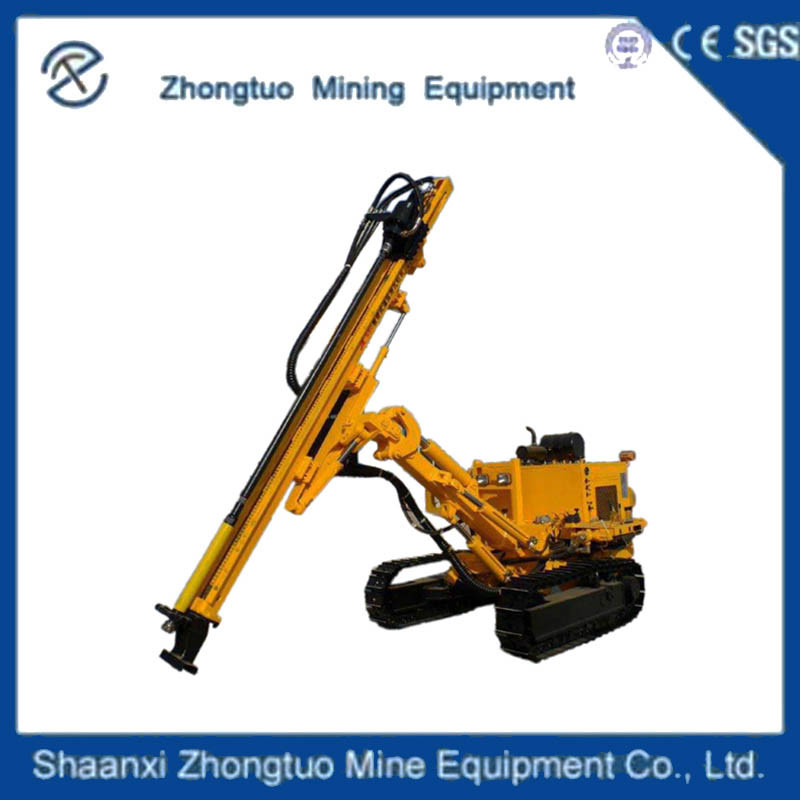

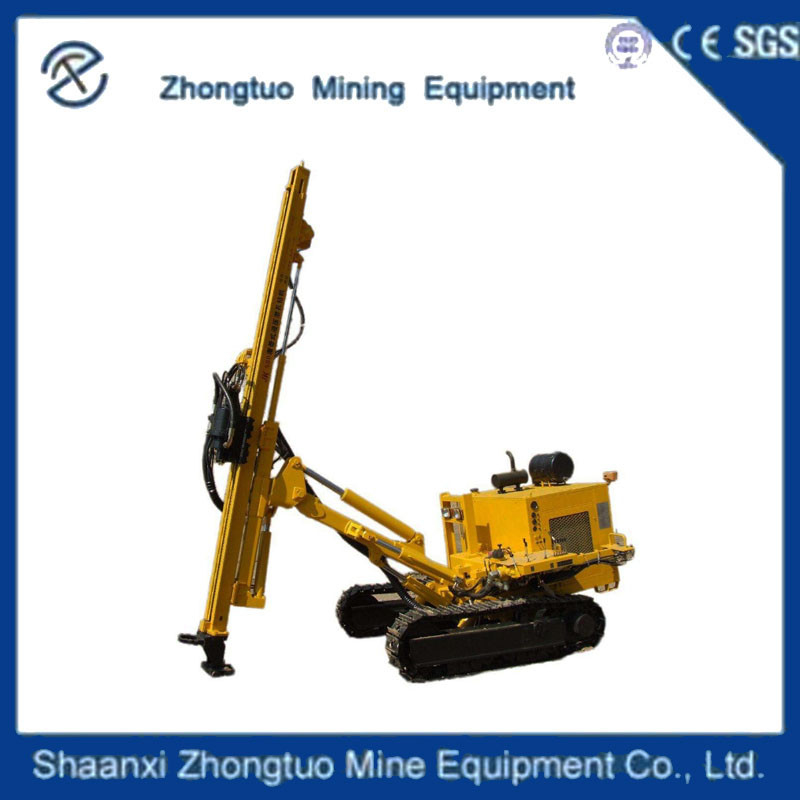

Hydraulic Crawler Mounted Anchor Drilling Rig Deep Water Well Drilling Mining Equipment
-
Highlight
7.5kw Crawler Mounted Anchor Drilling Rig
,Hydraulic Anchor Drilling Rig
,Water Well Drilling Rig Machine 1400rpm
-
Climbing Angle30°
-
Drill Angle90°
-
Drill Depth100m
-
Drill Diameterφ150mm
-
Drill Pipeφ60mm
-
MaterialSteel
-
Motor Power7.5kw
-
Motor Speed1400rpm
-
PowerElectric
-
Size2.5m X 2.5m X 3.5m
-
Speed200rpm
-
Torque50N.m
-
TypeDrilling Rig Machine
-
Voltage220V
-
Weight3 Tons
-
Place of OriginCN
-
Brand NameZT
Hydraulic Crawler Mounted Anchor Drilling Rig Deep Water Well Drilling Mining Equipment
Hydraulic Crawler Mounted Anchor Drilling Rig Deep Water Well Drilling Mining Equipment:
This Hydraulic Crawler Mounted Anchor Drilling Rig Deep Water Well Drilling Mining Equipment boasts a plethora of features that make it an ideal choice for customers requiring efficient and reliable performance. Its full hydraulic control, instrument display, and shaving capabilities are convenient and flexible, greatly improving efficiency and meeting the needs of customers. The gripper can be broken from the lake bolt and casing, reducing the labor intensity of workers while improving pole demolition efficiency. Additionally, the clamping cylinder plug is adjustable to use the Φ 60mm anchor and front and rear grippers. This rig is designed to meet the requests and work standards of customers. The Crawler Mounted Anchor Drilling Rig is integrated, with tracked walking, a sorting machine, a stone crushing machine, a magnetic separator, a copper ore processing plant, gold mining equipment, drill bits, drilling tool, drill, rock drill, and other drilling equipment, making it an ideal choice for customers in the mining industry.
1. full hydraulic control, instrument display, and shaving are convenient and flexible, greatly improving the efficiency and meeting the needs of customers.
2. gripper can be broken from the lake bolt and casing, reducing the labor intensity of workers, and pole demolition efficiency.
3. Clamping cylinder The plug is adjustable to use the Φ 60mm anchor, and front and rear grippers.
The customer's request is our work standard
Hydraulic Crawler Mounted Anchor Drilling Rig Deep Water Well Drilling Mining Equipment Description:
The Crawler Mounted Anchor Drilling Rig is integrated, with tracked walking chassis and clamping shackle. The Crawler chassis moves quickly, and the hole is convenient; the clamping shackle can automatically remove the drill pipe and casing, reducing the labor intensity of workers to improve the construction efficiency.
Hydraulic Crawler Mounted Anchor Drilling Rig Deep Water Well Drilling Mining Equipment Parameters:
| Drilling diameter | ф150-ф250(mm) |
| Drilling depth | 130-170(m) |
| Final hole diameter | 75mm |
| Drill pipe diameter / casing diameter | Ф73,ф89,ф102,ф114(mm) |
| Drilling angle | 0-90(° ) |
| Rotator output speed | 10/20/30/35/40/60/65/70/85/130/170(r/min) |
| Rotator Output Torque | 7500(N.m) |
| Rotator travel | 3400(mm) |
| Rotator lift force | 70(kN) |
| Rotator lift speed | 0-5 adjustable /7/23/30(m/min) |
| Rotor pressure | 36(kN) |
| Rotary press speed 0-10 adjustable | 0-10 adjustable /14/46/59(m/min) |
| Walking way | crawler walking |
| Climbing angle | 25(° ) |
| Crawler ground pressure | 36(kpa) |
| Walking speed | 20(km/h) |
| Rotary mode | the whole machine manual rotation (automatic rotation optional) |
| Rotary structure | slewing bearing |
| Positioning | Positioning Pins |
| Input power (motor) | 55+18.5(KW) |
| Shipping status (degrees x width x height) | 5400x2100x2000(mm) |
| Weight | 6000(kg) |
