D440B Drilling Rig With Anti-Jamming System 312l/S Diesel Engine 16m3/Min Air Compressor

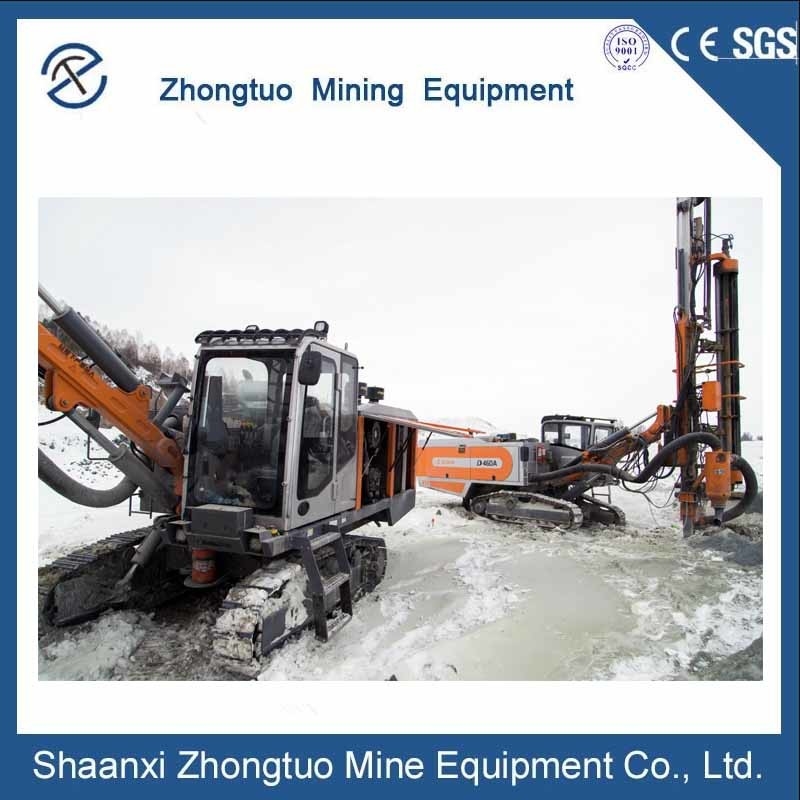

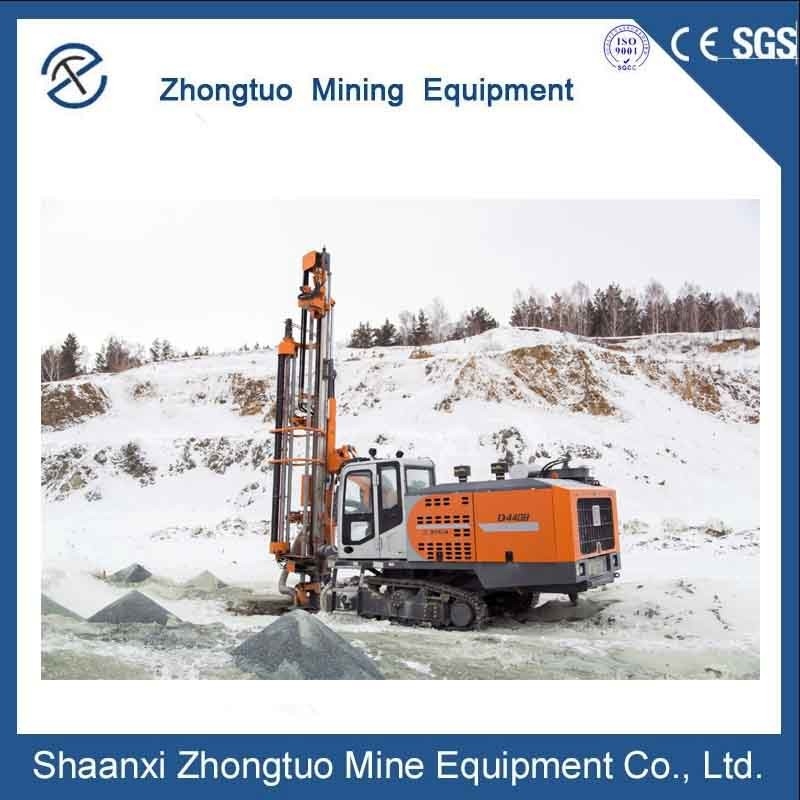

The D440 series drilling rigs are one of the most compact and lightweight closed cabin drilling rigs available. Small dimensions and a weight of 13,500 kg allow you to confidently work in limited areas with difficult terrain. The maneuverable tracked chassis ensures movement and operation on longitudinal slopes of up to 30° and transverse slopes of up to 10°. Despite its small size, the D440B is seriously equipped: a 4" diameter hammer allows drilling wells with a diameter of 130 mm and a depth of up to 21 meters.

Most drilling operations are automated and do not require the driller to leave the cab while working. This makes this drilling rig ideal for Russian weather conditions. Convenient control joysticks, thoughtful ergonomics of the workplace and excellent visibility allow the operator to work for a long time and with minimal fatigue. The cabin is protected from external influences (FOPS).

The supply and replacement of drill rods from the drum mechanism occurs automatically (RHS); when equipped, the installation carries 7 rods, each 3 meters long. To protect drill rods from destruction, the D440B, like other models, is equipped with an anti-jamming system.

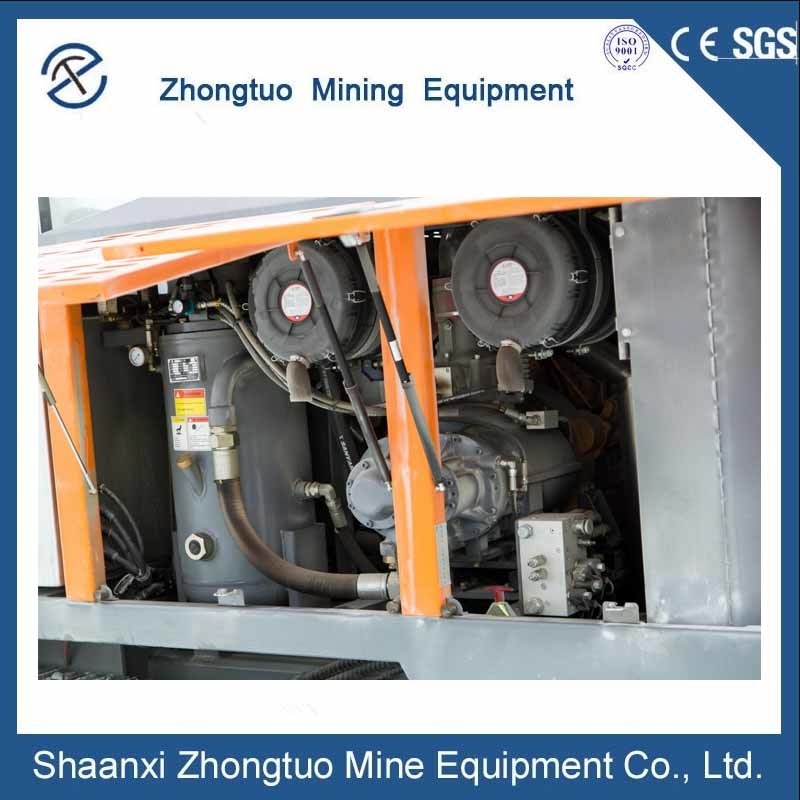

The power plant is a turbocharged and water-cooled diesel engine with a capacity of 312 l/s. The engine drives the air compressor and hydraulic pump.

The productivity of the screw air compressor is 16 m3 of air per minute (267 l/sec) at a pressure of 17 bar. Dust removed from the well is retained by a dual-circuit filtration system. The hydraulic pump ensures rotation of the drill string (up to 110 rpm), as well as movement of the installation (3 km/h).

The hydraulic rotator transmits a torque of 2800 Nm to the drill string. The lifting force of 31 kN is sufficient to confidently lift the drill string even in fractured rocks or soft formations.

• Automatic drill rod extension system (RHS)
• Large capacity fuel tank of 450 liters

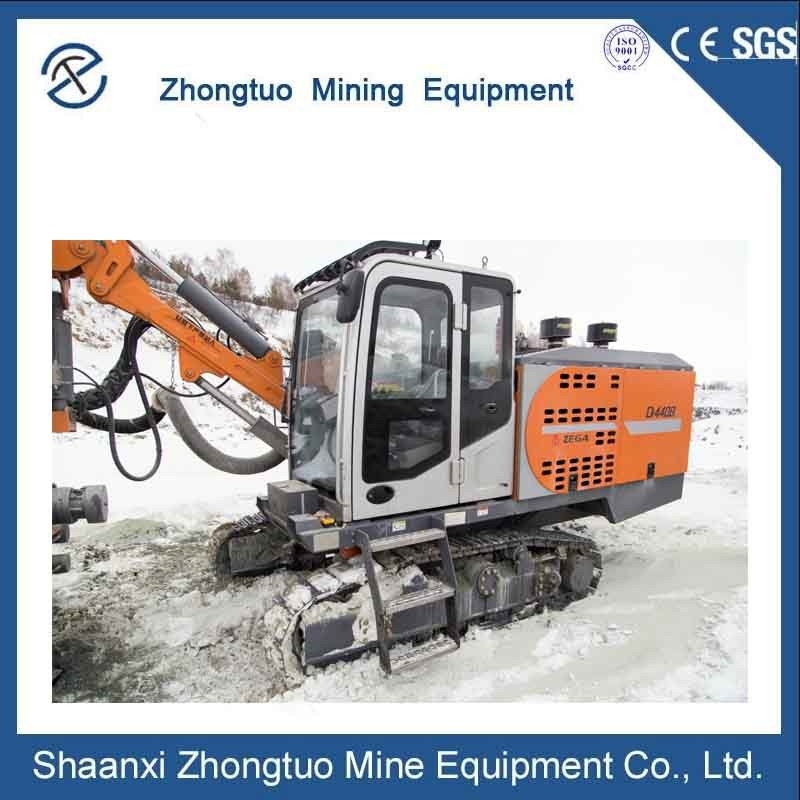

• Fully enclosed cabin with air conditioning and heater
• Independent air intake filter system for engine and air compressor
• Powerful and reliable YUCHAI YC6L310 engine
• Climbability 30°

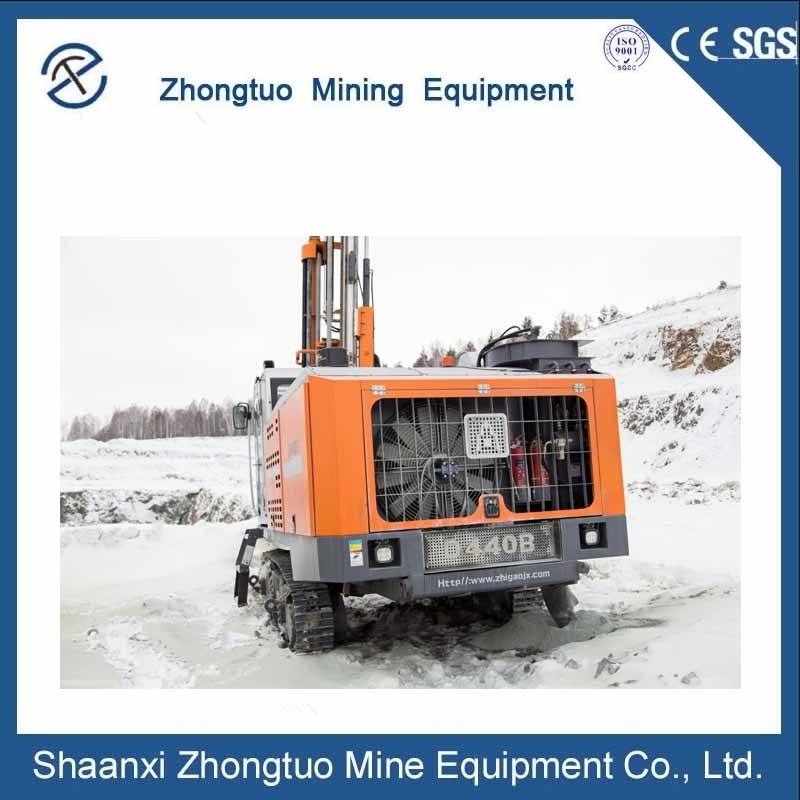

• High performance cooling system
• Powerful dual-circuit system for retaining dust from the well during drilling
• Simple and user-friendly control system

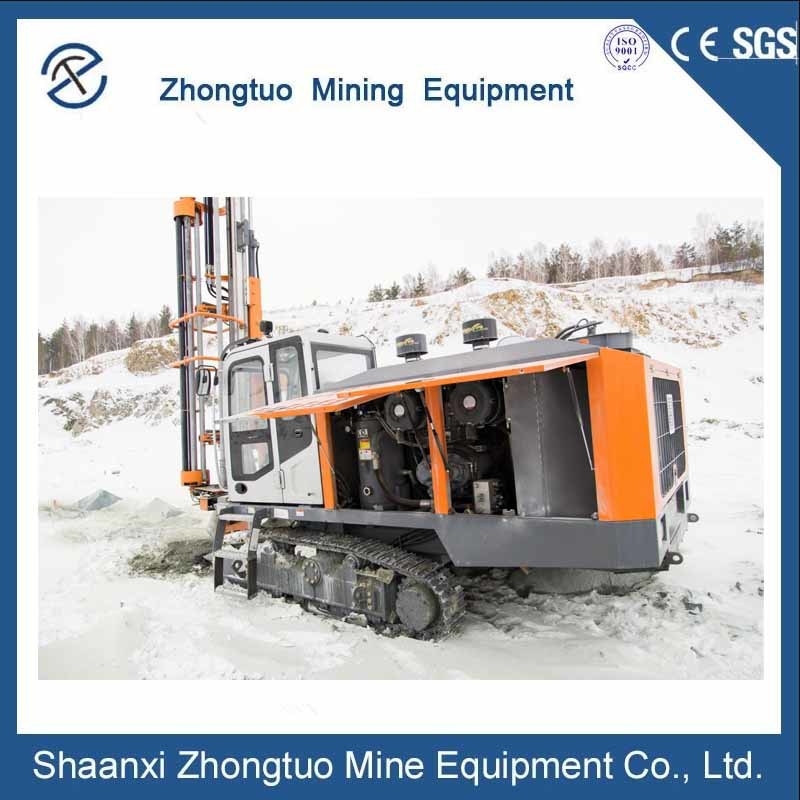

• Convenient engine compartment for maintenance
• Night lighting

FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.

Q2: What is the exact address of your factory?
A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your requirements.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will it take to arrange production?
A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.

Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.


Why you choose us:

1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
