Round Pile Head Cutter
,Concrete Pile Head Cutter
,Concrete Hydraulic Pile Breaker
-
Model NO.ZT
-
Power SourceDiesel
-
Motor Power22kw
-
NoiseWith Noise
-
ConditionNew
-
Transport PackageWooden Case
-
Specification260*200*800mm, 420*450*59mm
-
TrademarkZT
-
OriginChina
-
Supply Ability1000pieces Per Year
-
Shipping CostTo Be Negotiated| Freight Cost Calculator
-
TypePressure Pile Driver
-
Pressure Pile Driver TypeHydraulic Pile Driver
-
Pile Hammer TypeHydraulic Hammer
-
CertificationEPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
Concrete Round Pile Head Cutter Hydraulic Pile Breaker
Product Description
Company Info.
Basic Info.
Model NO.
ZT
Power Source
Diesel
Motor Power
22kw
Noise
With Noise
Certification
EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Transport Package
Wooden Case
Specification
260*200*800mm, 420*450*59mm
Trademark
ZT
Origin
China
Production Capacity
1000pieces Per Year
Product Description

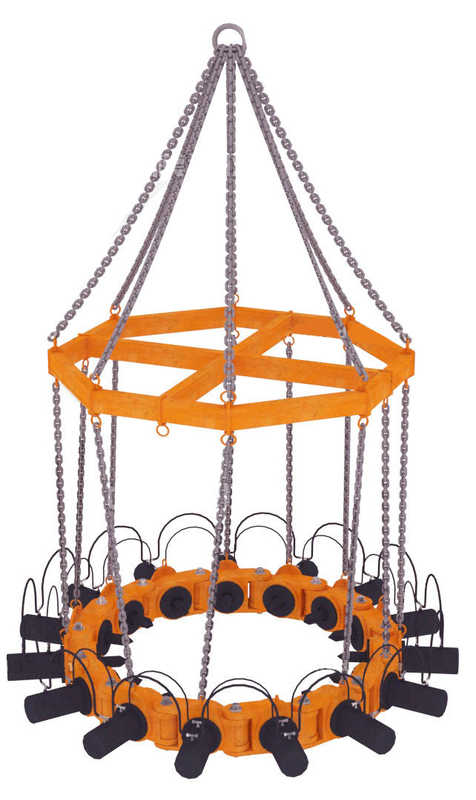

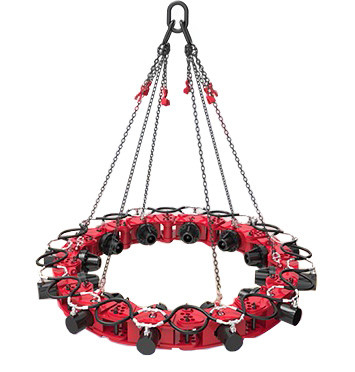

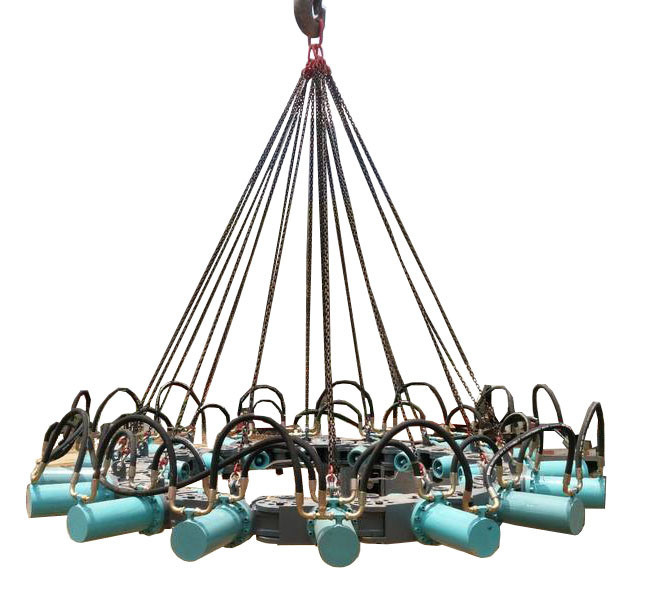

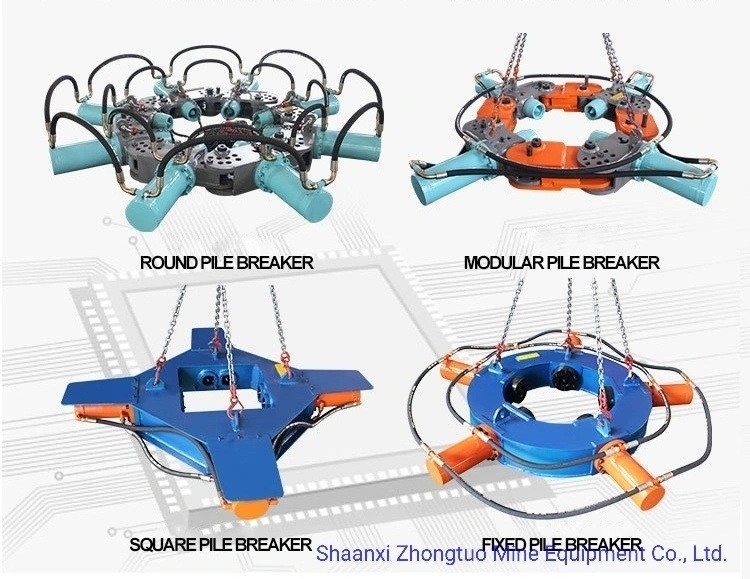

Hydraulic Round Pile Breaker/Cutter for Round Concrete Piles , Cutting Piles of 200-2500mm Diameter
| moduler number | pc | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | |||||
| total weight | KG | 1600 | 2624 | 2952 | 3280 | 3608 | 3936 | 4264 | 4592 | 4920 | 5248 | 5576 | 5904 | |||||
| pile diamter | mm | 200-800 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1460-1970 | 1620-2200 | 2200-2360 | 2360-2500 | |||||
| applicable drivers | T | 20T-30T | 30T-40T | hydraulic pump | ||||||||||||||
| Max.pressure of drill rod | 300KN | Max.pressure of single cylinder | 20L/min | auxiliary projects engineering tons | >=20t | |||||||||||||
| Max.stroke of hydraulic cylinder | 300mm | drill rod diameter | 110mm | single moduler weight | 328KG | |||||||||||||
| Max.pressure of hydraulic cylinder | 30MPa | Single broken height |
<=500mm | single moduler size | 885*780*340 | |||||||||||||
Hydraulic Rock Stone Splitter for Quarry Demolition
Advantages: Manual operation of light pile pulling tools, has a strong pile pulling force; Suitable for the harsh ground pile pulling work, can pull out any shape of wood and iron pile; The design of chain and pile automatic locking structure; 6 tons pulling force, using lever to apply auxiliary force, can reach 10 tons pulling force; Used for repairing guardrail piles, with hydraulic pile driver and crushing pick can be connected to Zhongtuo hydraulic power station, or connected to engineering truck, excavator, transfer machine and other hydraulic export through Zhongtuo's hydraulic shunt valve.
Shaanxi Zhongtuo Mining Equipment Co., Ltd. is a global supplier who specializing in bridge stretching
equipment, downhole drill series, steel processing machinery, rock splitting equipment, grouting equipment
and pavement processing equipment. After years of hard work and development. We have established a
solid foundation for providing quality services with many years of experience in mechanical equipment
manufacturing. Our high-quality bridge equipment and mining machinery products such as bridge
stretching equipment, downhole drill series, steel processing machinery, rock splitting equipment,
grouting equipment and pavement processing equipment have been well received by users. In recent years
we have begun to focus on the development of international markets. ?With the continuous improvement of
high-quality products and high-quality services, our products are highly appreciated by customers in the
international market. Due to the excellent performance of the products and professional after-sales service
, our products have been sold to: Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia,
Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, Sudan, Madagascar, etc. We have been
focusing on high-quality mechanical equipment and construction products for more than 20 years, and are
widely used in mining, construction and water conservancy projects, railway
