Highlight
Splitting Hydraulic Rock Splitter
,Mining Hydraulic Rock Splitter
,1285mm Rock Splitter Machine
-
ConditionNew
-
WarrantyOne Year
-
After-sales ServiceTracking Guidance & Service
-
Machine Length650-1285mm
-
Plunger Diameter35-70mm
-
Hole Diameter87-200mm
-
Pressure100-150MPa
-
Transport PackageWooden Box
-
SpecificationHydraulic
-
TrademarkZHONGTUO
-
OriginChina
-
HS Code8467890000
-
Supply Ability1000pieces/Month
-
Shipping CostTo Be Negotiated| Freight Cost Calculator
-
Motor TypeDC Motor
-
Engine TypeDiesel
-
CertificateCE, ISO

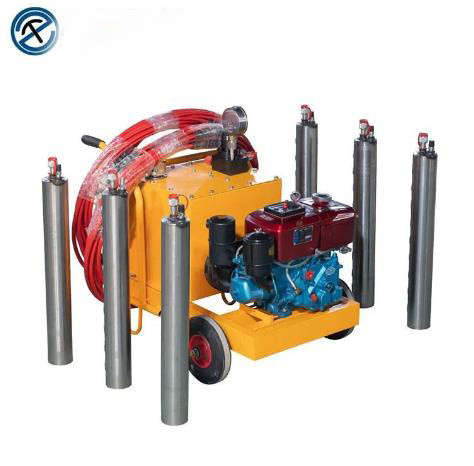

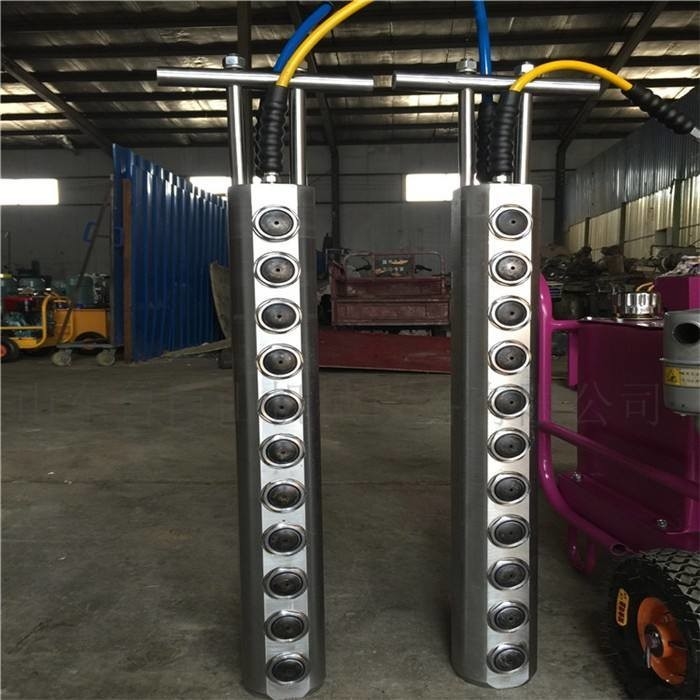

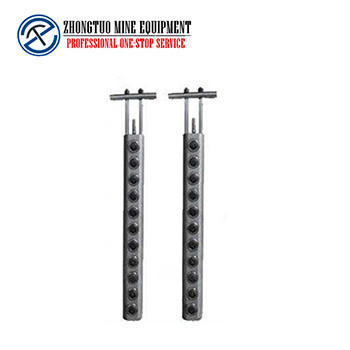

Mining Splitting Hydraulic Rock Splitter Machine
Product Description
Company Info.
Basic Info.
Condition
New
Warranty
One Year
After-sales Service
Tracking Guidance & Service
Machine Length
650-1285mm
Plunger Diameter
35-70mm
Hole Diameter
87-200mm
Pressure
100-150MPa
Transport Package
Wooden Box
Specification
Hydraulic
Trademark
ZHONGTUO
Origin
China
HS Code
8467890000
Production Capacity
1000pieces/Month
Product Description
Product Data
| Model | Length(mm) | Piston | Plunger | Hole | Extension | Weight(kg) |
| Quantity | Diameter(mm) | Diameter(mm) | Length(mm) | |||
| ZT90 | 650 | 9 | 35 | 87 | 15 | 27 |
| ZT100 | 710 | 8 | 45 | 112 | 25 | 47 |
| ZT110 | 820 | 11 | 40 | 100 | 22 | 44 |
| ZT120 | 770 | 8 | 45 | 122 | 15 | 60 |
| ZT130 | 1006 | 10 | 45 | 130 | 23 | 97 |
| ZT150 | 960 | 8 | 50 | 153 | 33 | 118 |
| ZT170 | 1004 | 8 | 60 | 174 | 34 | 166 |
| ZT200 | 1285 | 8 | 70 | 200 | 32 | 291 |

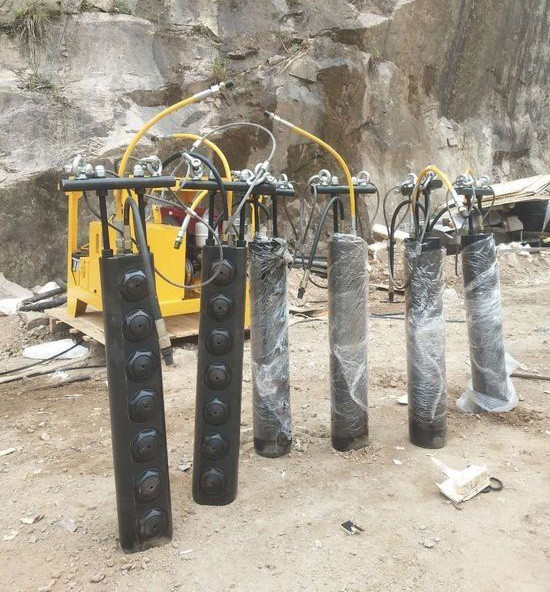

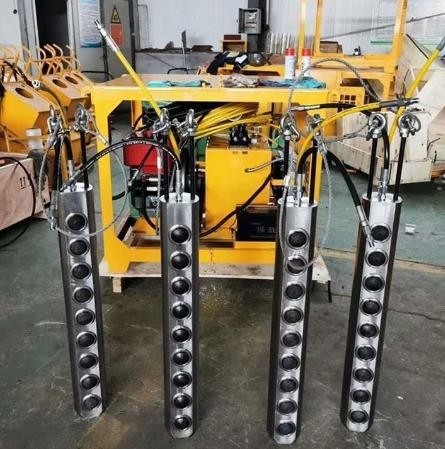

Working principle
Hydraulic Plunger Rock Splitter is mainly composed of a high hydraulic pump station and split rod. The force output by the 140-180MP ultra-high pressure oil pump station acts on the hole, and the rock hydraulic splitter blasting equipment would split the rock in a predetermined direction under the (3000t) powerful force.
Notice
In operation, the hole must be straight when punching, and the rod must be placed in the hole to ensure that the rod cannot be exposed. If not, this would result in uneven force and an unachievable blasting effect. Keep the horizontal plane, be a straight line, and at the same time face the air side.
Application areas:
1. Mining of metal mines, non-metal mines, and coal mines.
2. Earthwork excavation works: roads and bridges, houses, foundations, reinforced concrete demolition, and other works.
3. Tunneling projects: subways, culverts, mines, underground pipelines, river management, and other projects.
4. Smelting and dismantling work: crushing and dismantling various smelting furnaces, kilns, refractory bricks, and carbon blocks.
ZHONGTUO TEAM
Company Profile
Shaanxi Zhongtuo Mining Equipment Company was founded in 2005 in Xi'an, Shaanxi Province, It is a foreign trade company specializing in the research, development, and sales of machinery and equipment in the fields of mining, bridges, pavements, and tunnels.
At present, our customers are all over Russia, Thailand, Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia, Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, India, and many other countries.
About Certifications:

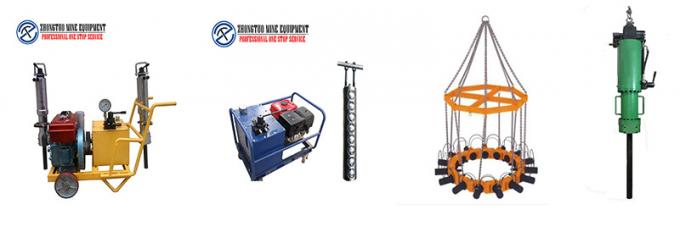

About the products:
Packing and Shipping:
Wooden Packing Advantages
Wood has good cushioning properties, corrosion resistance, high strength, and good moisture absorption properties, and the wooden box is suitable for items of various sizes, which is convenient for storage and transportation.
Happy Time
FAQ:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.
Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.
Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.
Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
Hydraulic Plunger Rock Splitter is mainly composed of a high hydraulic pump station and split rod. The force output by the 140-180MP ultra-high pressure oil pump station acts on the hole, and the rock hydraulic splitter blasting equipment would split the rock in a predetermined direction under the (3000t) powerful force.
Notice
In operation, the hole must be straight when punching, and the rod must be placed in the hole to ensure that the rod cannot be exposed. If not, this would result in uneven force and an unachievable blasting effect. Keep the horizontal plane, be a straight line, and at the same time face the air side.
Application areas:
1. Mining of metal mines, non-metal mines, and coal mines.
2. Earthwork excavation works: roads and bridges, houses, foundations, reinforced concrete demolition, and other works.
3. Tunneling projects: subways, culverts, mines, underground pipelines, river management, and other projects.
4. Smelting and dismantling work: crushing and dismantling various smelting furnaces, kilns, refractory bricks, and carbon blocks.
ZHONGTUO TEAM
Company ProfileShaanxi Zhongtuo Mining Equipment Company was founded in 2005 in Xi'an, Shaanxi Province, It is a foreign trade company specializing in the research, development, and sales of machinery and equipment in the fields of mining, bridges, pavements, and tunnels.
At present, our customers are all over Russia, Thailand, Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia, Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, India, and many other countries.
About Certifications:
About the products:
Packing and Shipping:
Wooden Packing AdvantagesWood has good cushioning properties, corrosion resistance, high strength, and good moisture absorption properties, and the wooden box is suitable for items of various sizes, which is convenient for storage and transportation.
Happy TimeFAQ:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.
Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.
Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.
Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
