Hydraulic Rock Splitter High Pressure Oil Driven Stone Splitting Machine For Rock Concrete

Working Theory

Introducing the High Power Electric Driven Concrete Shotcrete Pump Machine, a powerful and efficient tool designed for drilling holes in rock or concrete. Equipped with wedges that are easily placed into the hole, this machine utilizes high-pressure oil to drive the piston of the splitter cylinder. The middle wedge is then pushed down, forcing two counter wedges against the wall of the hole. With increased tension, the material's tensile strength is surpassed and the rock or concrete splits.

Using the High Power Electric Driven Concrete Shotcrete Pump Machine is simple. The first step is to drill the holes of the required diameter and length. Next, the wedge group of cylinders is placed into the hole, with careful position checking before initiating the splitter. Once started, the counter wedges expand, creating a crack in the rock or concrete. The direction of the cracking is the same as that of the splitter handle.

This powerful machine has a wide range of applications, including in the mining industry, construction engineering, demolition engineering, chemical industry, smelting production, overhaul engineering, and various rescue operations. With its advanced technology and reliable performance, the High Power Electric Driven Concrete Shotcrete Pump Machine is an essential tool for any professional in need of efficient drilling and splitting capabilities.

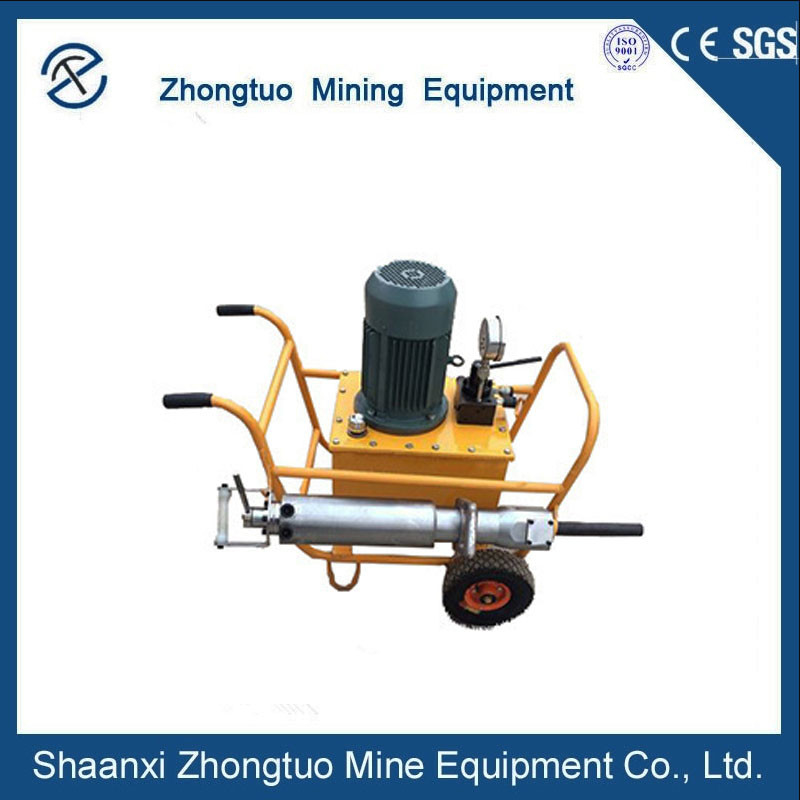

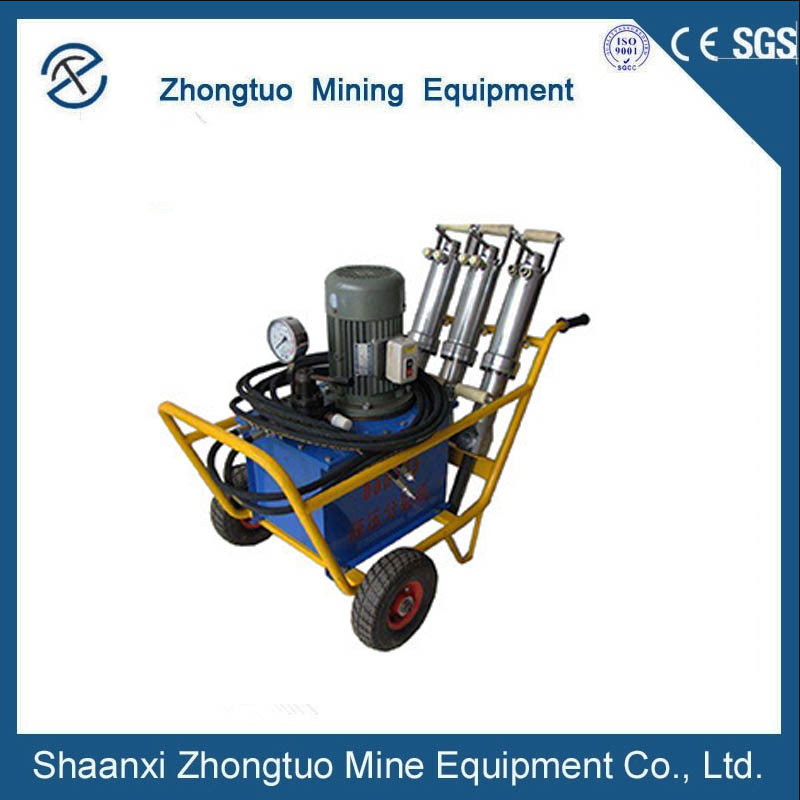

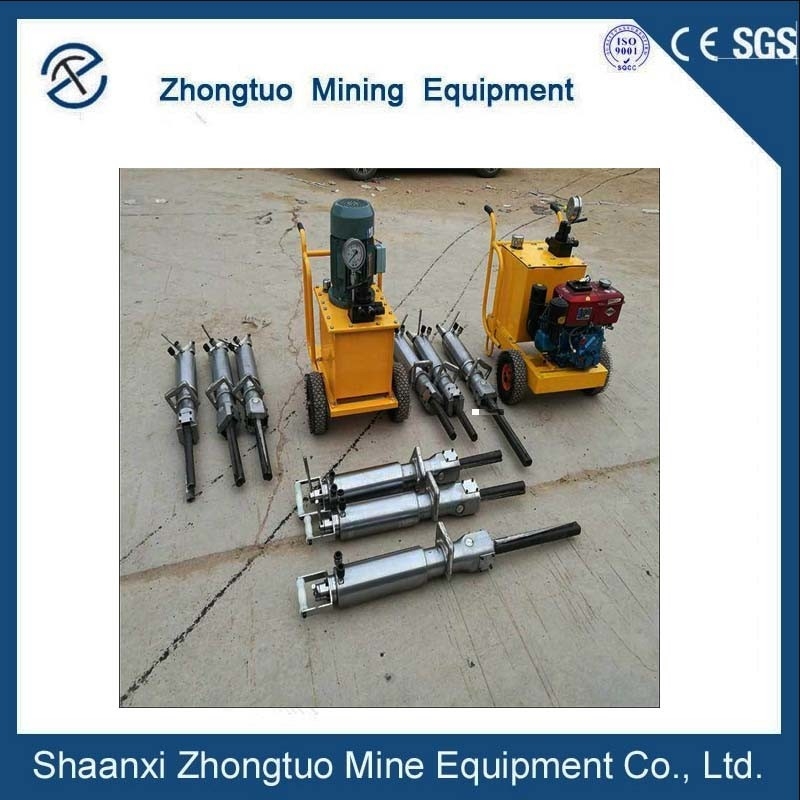

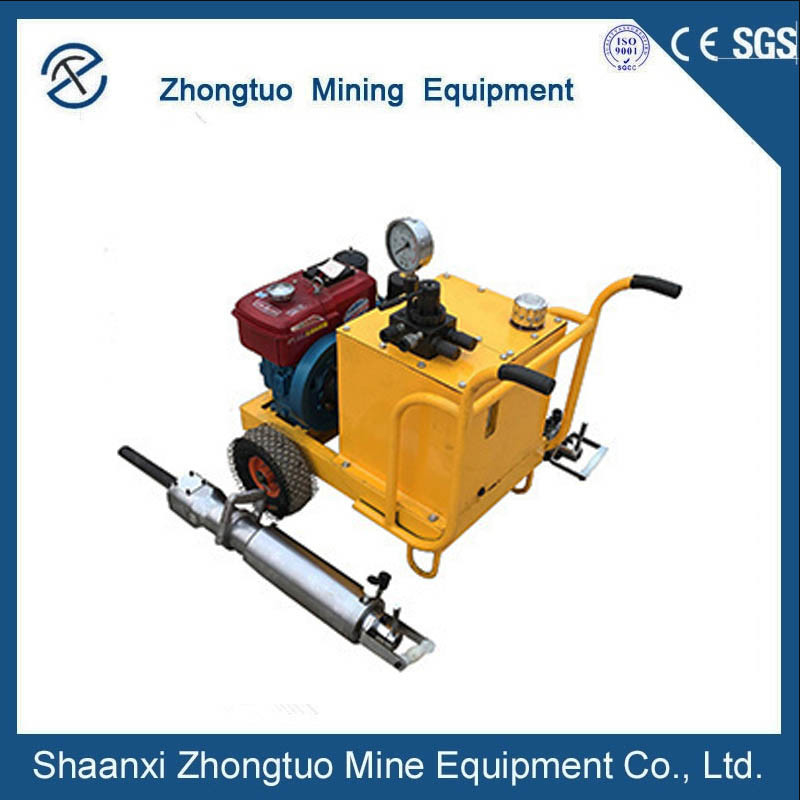

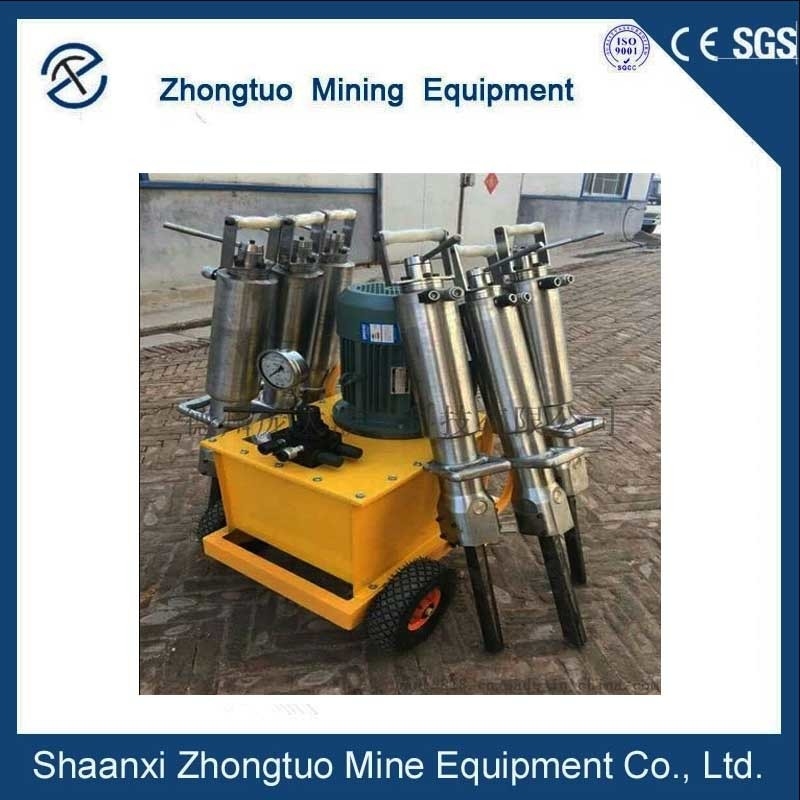

The wedges are placed into a drilled hole. When a splitter is operated, the power pack produces high-pressure oil to drive the piston of the splitter cylinder which in turn pushes the middle wedge down. The downward movements of the middle wedge force two counter wedges against the wall of the hole. When the tension increases beyond the material's tensile strength.

Step 1: Drill the holes in the rock/concrete required to split of suitable diameter and length.

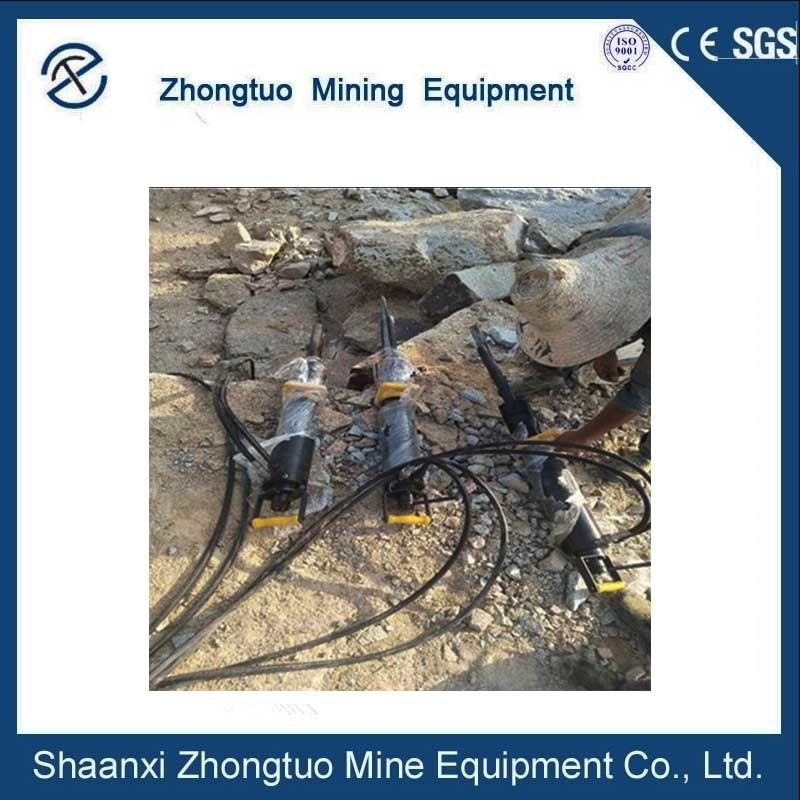

Step 2: Put the wedge group of cylinders into the hole. Check the position before starting the splitter.

Step 3: Once the splitter is initiated, a crack will be developed due to the expansion of counter wedges. The cracking direction of the rock/concrete is the same as that of the splitter handle.

Applicable fields

Hydraulic splitting machines have been widely used in the mining industry, construction engineering, demolition engineering, chemical industry, smelting production and overhaul engineering, and various rescue and rescue fields.

Advantages
1. Security: The hydraulic splitting machine uses the physical properties of hydraulic oil to be non-compressible and movable and adds static thrust to complete the task of static controllability.
2. Eco-friendly: There is no vibration, impact, noise, dust, or flying debris in the whole process.
3. Efficiency: machine completes one task within 10 -15 seconds with powerful splitting force (the rock splitting tonnage can reach 840t), and can continue to work continuously with high efficiency.
4. Application flexibility: The splitting machine has a small volume, lightweight, and compact structure. It ensures that the application method is easy to learn, and just one person is required to operate it.

Parameter

FAQ:
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.

Q2: What is the exact address of your factory?
A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your requirements.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will it take to arrange production?
A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.

Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Why you choose us:

1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
