Diesel Drive Mining Machine Hydraulic Stone Splitter High Pressure Oil For Simultaneous Directional Cracking Of Rock

Introducing the Diesel Drive Mining Machine Hydraulic Stone Splitter. This powerful tool is designed for simultaneous directional cracking of rock, making it ideal for various mining applications. Using high-pressure oil as its energy source, this hydraulic handheld rock splitter applies the oblique wedge principle with great precision. With its immense force, this machine is capable of splitting rocks weighing thousands of tons in just a few seconds, effectively separating hard and massive ore from mountains. The advantages of this rock drill splitter are numerous. It is highly efficient, safe, and easy to use, making it the perfect choice for mining operations, dimensional stone quarrying, demolition, and the removal of mass and reinforced concrete. The new model of this splitter features 3 aluminum cylinders with a center wedge and one counter wedge for each. Additionally, it is equipped with a diesel motor engine, pump station, high-pressure hose, and other essential components. To operate this rock splitter, the wedges are inserted into a drilled hole. When activated, the power pack generates high-pressure oil, which drives the piston of the splitter cylinder, enabling precise and effective splitting of rocks. Choose the Diesel Drive Mining Machine Hydraulic Stone Splitter for unparalleled performance and reliability in your mining endeavors.

Hydraulic handheld rock Splitter for simultaneous directional cracking of rock

The splitting machine uses high-pressure oil as the energy source and skillfully applies the oblique wedge principle to make the splitting force reach hundreds of tons, even thousands of tons, so that thousands of tons of boulders can be easily split in a few seconds, so as to separate the hard and huge ore from the mountain.

Advantages of rock drill splitter:
Granite rock splitter is one of the efficient, safest and easiest ways of mining, dimensional stone quarrying, demolition & removing mass and reinforced concrete.

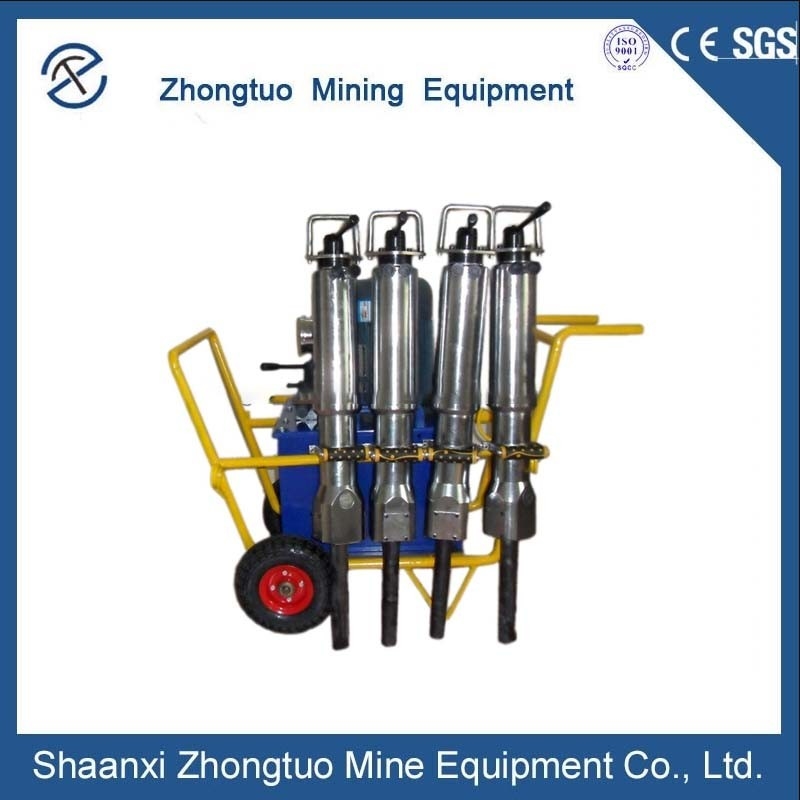

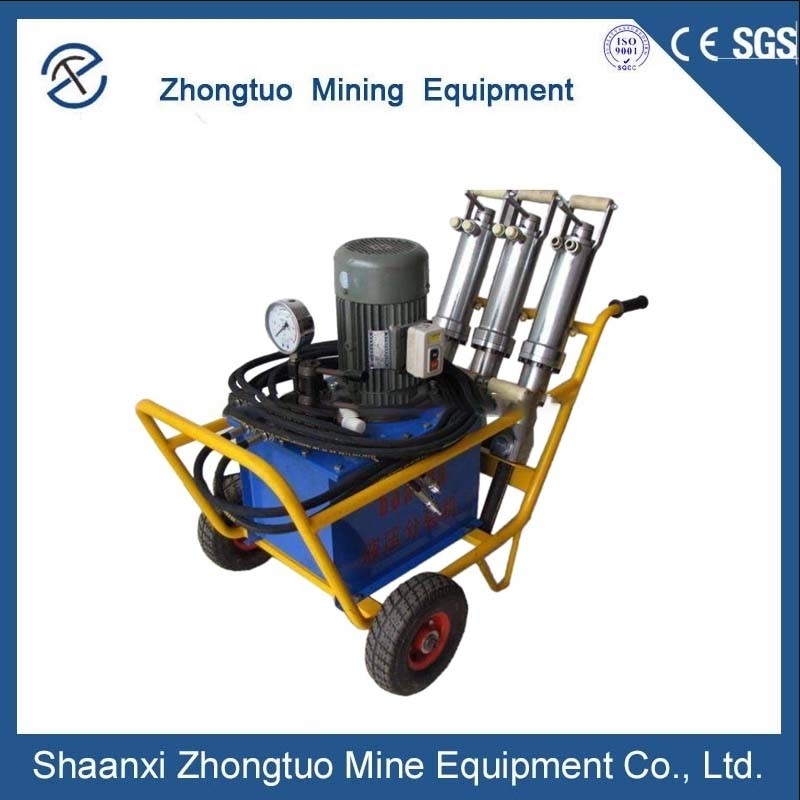

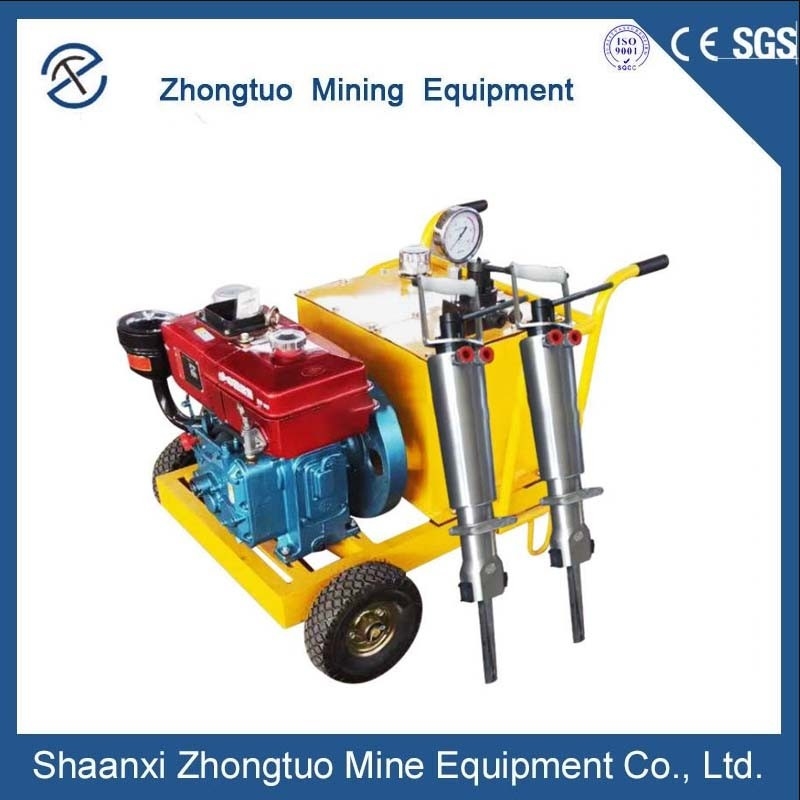

New model no splitter standard configuration is 3 aluminum cylinder with centre wedge and one counter wedge for each, and plus diesel motor engine, pump station, and high pressure hose etc.

How a rock splitter Works:

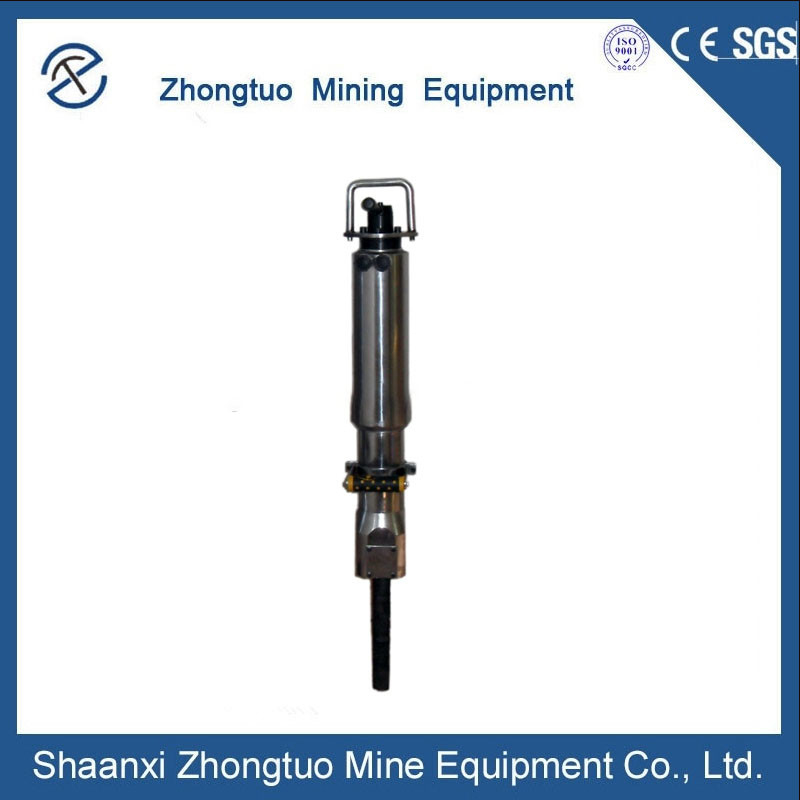

The wedges are placed into a drilled hole. When a splitter is operated, the power pack produces high-pressure oil to drive the piston of the splitter cylinder which in turn pushes the middle wedge down. The downward movements of the middle wedge force two counter wedges against the wall of the hole. When the tension increases beyond the tensile strength of the material, a split will occur.

Step 1: Drill the holes in the rock/concrete required to split of suitable diameter and length.

Step 2: Put the wedge group of cylinders into the hole. Check the position before starting the splitter.

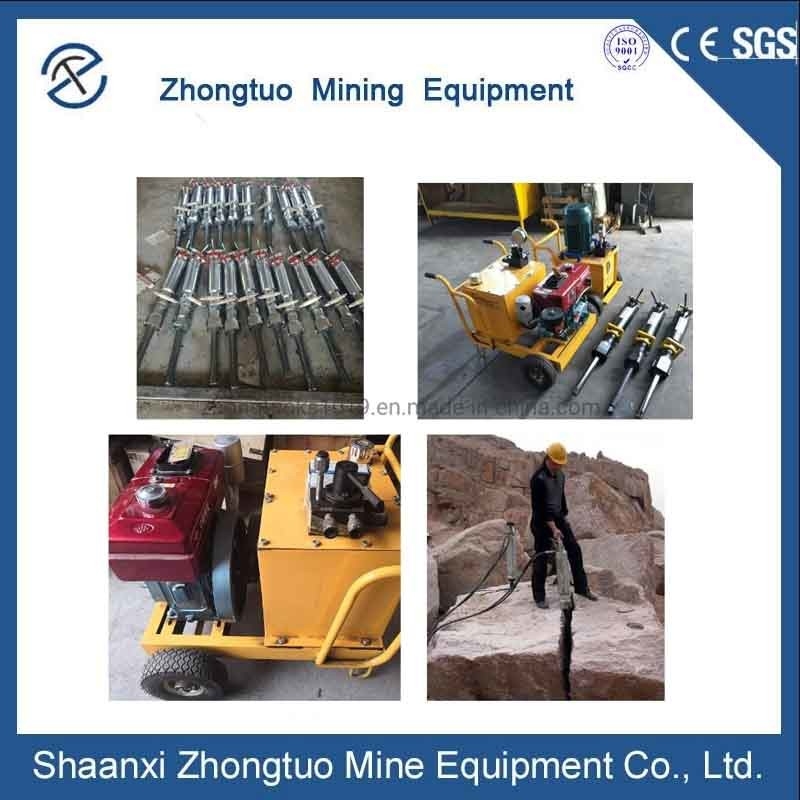

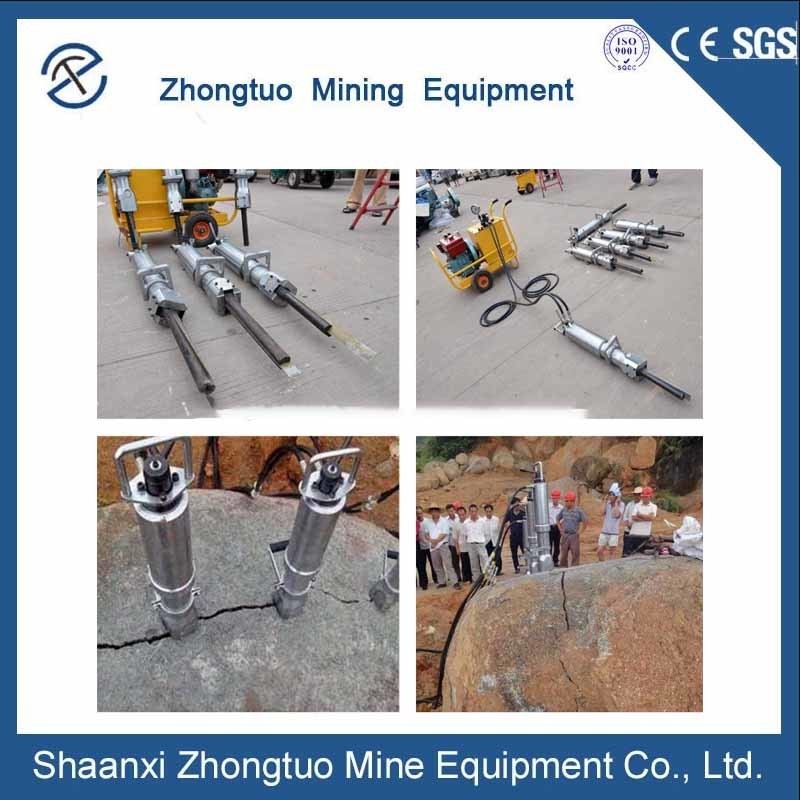

Step 3: Once the splitter is initiated, a crack will be developed due to the expansion of counter wedges. The cracking direction of the rock/concrete is the same as that of the splitter handle.

How a rock splitter Works:

The wedges are placed into a drilled hole. When a splitter is operated, the power pack produces high-pressure oil to drive the piston of the splitter cylinder which in turn pushes the middle wedge down. The downward movements of the middle wedge force two counter wedges against the wall of the hole. When the tension increases beyond the tensile strength of the material, a split will occur.

Step 1: Drill the holes in the rock/concrete required to split of suitable diameter and length.

Step 2: Put the wedge group of cylinders into the hole. Check the position before starting the splitter.

Step 3: Once the splitter is initiated, a crack will be developed due to the expansion of counter wedges. The cracking direction of the rock/concrete is the same as that of the splitter handle.

·
