3000T High Pressure Hydraulic Plunger Rock Splitter For Construction High-Pressure Hydraulic Pump
-
Highlight
Construction Hydraulic Rock Splitter
,High Pressure Hydraulic Plunger Rock Splitter
,3000T Rock Splitter Machine
-
ColorYellow
-
Dimension1200x800x1200mm
-
Frequency50Hz
-
MaterialSteel
-
Max Splitting Depth500mm
-
Max Splitting Force50T
-
Max Splitting Height300mm
-
Max Splitting Width400mm
-
Oil Pressure25Mpa
-
Oil Tank Capacity20L
-
Power Rating3KW
-
Power SupplyElectric
-
Product NameRock Splitter Machine
-
Voltage220V
-
Place of OriginCN
-
Brand NameZT
3000T High Pressure Hydraulic Plunger Rock Splitter For Construction High-Pressure Hydraulic Pump
The High Pressure Sewage Sludge Treatment Hydraulic Slip Mud Pump is a reliable and efficient piece of equipment designed for use in construction, mining, and other industrial applications. This hydraulic pump is capable of delivering high-pressure output that is suitable for a variety of tasks. With its submersible pump and water pump features, it can easily handle even the most challenging pumping jobs, including the treatment of sewage sludge.
In addition, this hydraulic pump is versatile enough to be used in a range of machinery, including hydraulic tools, hydraulic breakers, and even trucks, cranes, tractors, and other heavy equipment. Its spare parts and machinery components are also available, ensuring that it can be easily repaired and maintained as necessary.
One standout feature of this hydraulic pump is its use in the Hydraulic Plunger Rock Splitter. This equipment is composed of a high-pressure hydraulic pump station and split rod, which work together to deliver a powerful force of up to 3000t. This force acts on rock in a predetermined direction, resulting in an efficient and precise blasting effect.
In order to achieve optimal results, it is essential to ensure that the hole is straight when punching and that the rod is properly placed within the hole. This ensures that the force is evenly distributed and that the blasting effect is achieved as planned. By following these instructions and keeping the horizontal plane and straight line, the High Pressure Sewage Sludge Treatment Hydraulic Slip Mud Pump and Hydraulic Plunger Rock Splitter are sure to provide reliable and efficient results for a range of industrial applications.
Product Data
| Model | Length(mm) | Piston | Plunger | Hole | Extension | Weight(kg) |
| Quantity | Diameter(mm) | Diameter(mm) | Length(mm) | |||
| ZT90 | 650 | 9 | 35 | 87 | 15 | 27 |
| ZT100 | 710 | 8 | 45 | 112 | 25 | 47 |
| ZT110 | 820 | 11 | 40 | 100 | 22 | 44 |
| ZT120 | 770 | 8 | 45 | 122 | 15 | 60 |
| ZT130 | 1006 | 10 | 45 | 130 | 23 | 97 |
| ZT150 | 960 | 8 | 50 | 153 | 33 | 118 |
| ZT170 | 1004 | 8 | 60 | 174 | 34 | 166 |
| ZT200 | 1285 | 8 | 70 | 200 | 32 | 291 |
Working principle

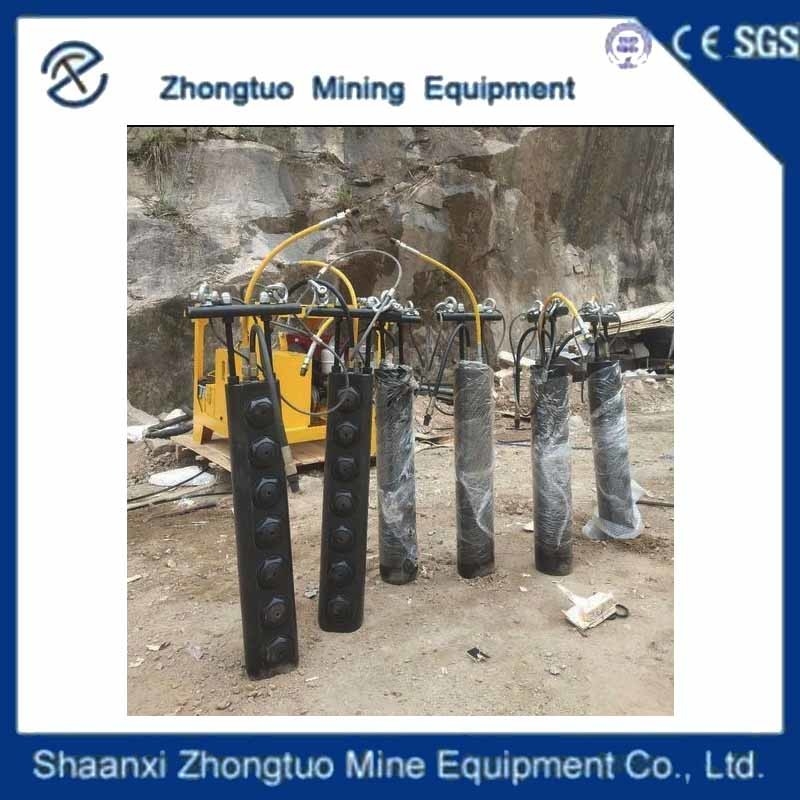

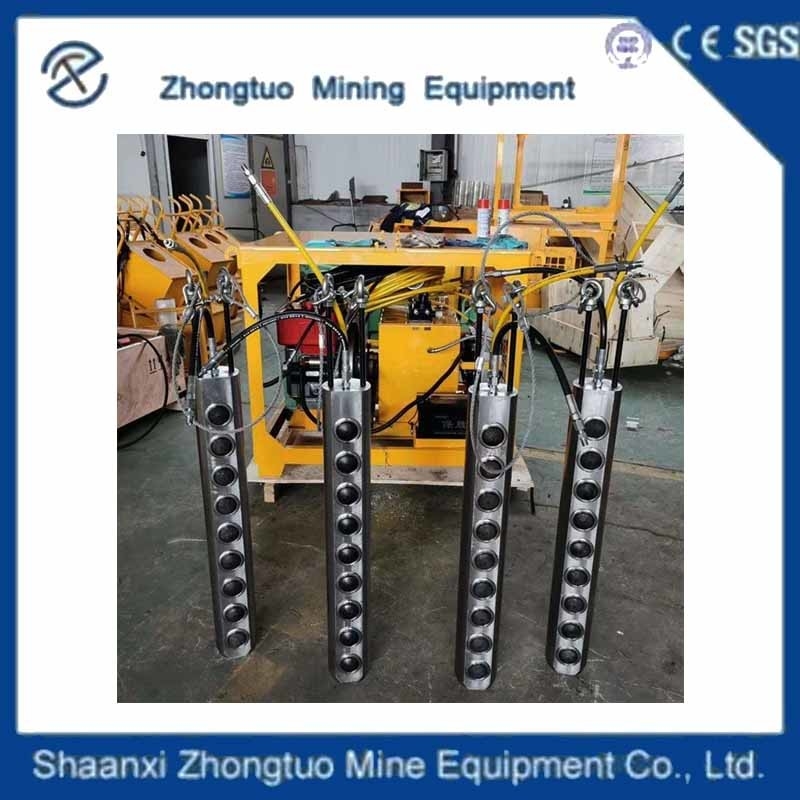

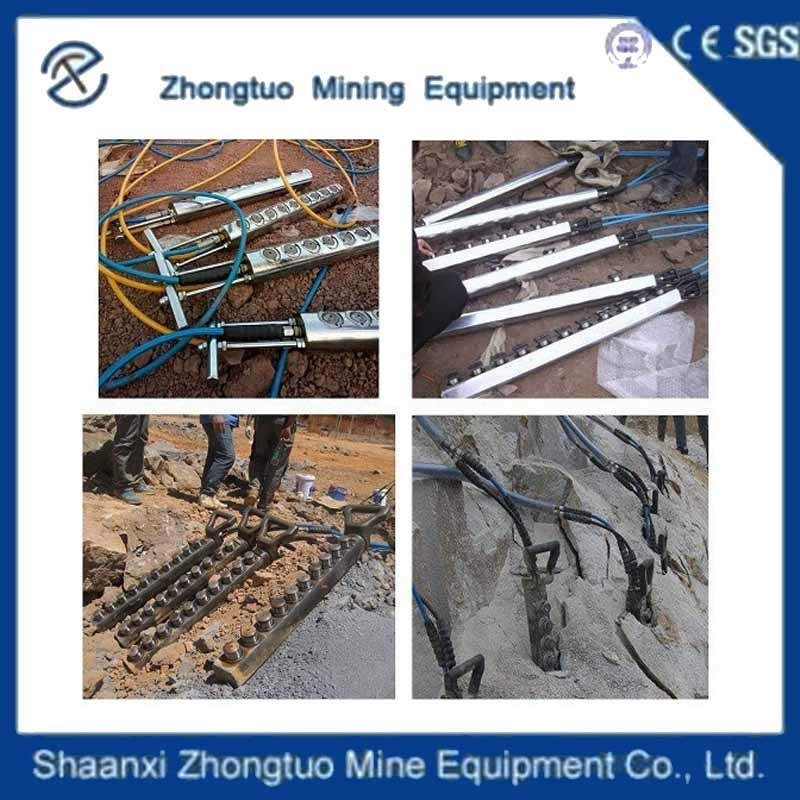

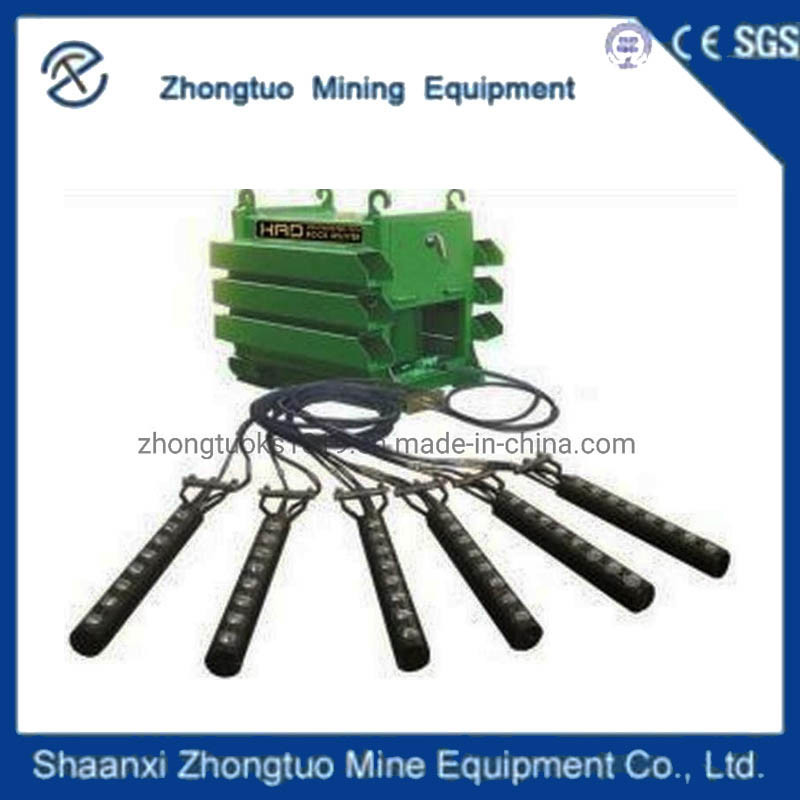

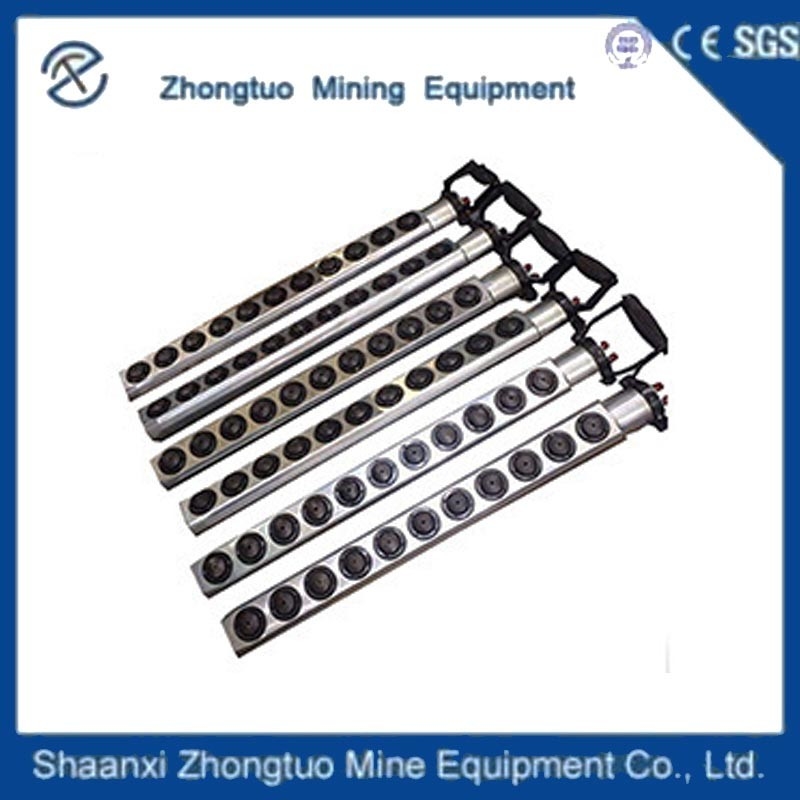

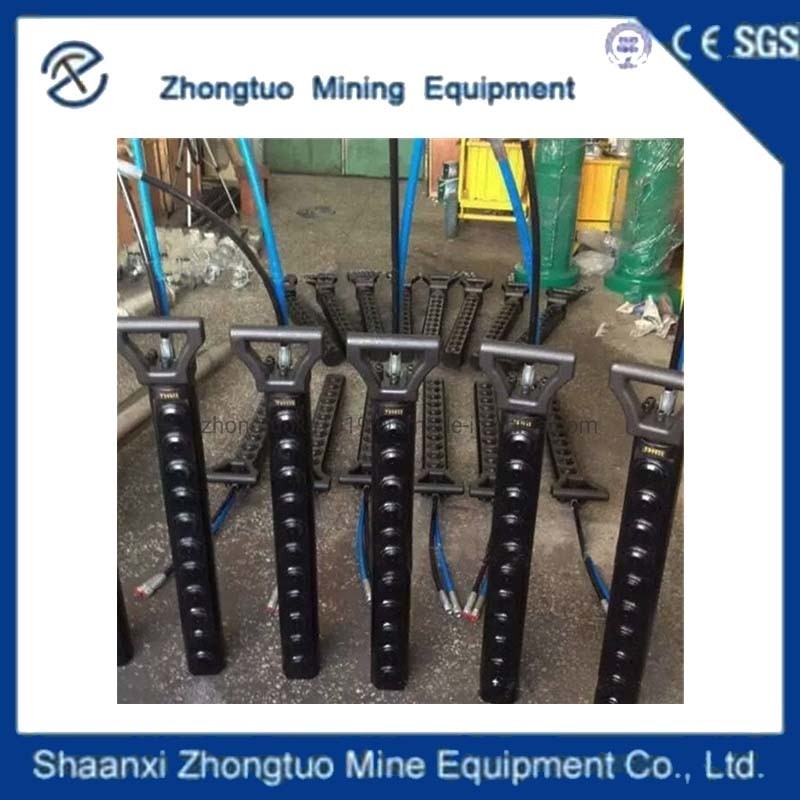

Hydraulic Plunger Rock Splitter is mainly composed of a high hydraulic pump station and split rod. The force output by the 140-180MP ultra-high pressure oil pump station acts on the hole, and the rock hydraulic splitter blasting equipment would split the rock in a predetermined direction under the (3000t) powerful force.
Notice
In operation, the hole must be straight when punching, and the rod must be placed in the hole to ensure that the rod cannot be exposed. If not, this would result in uneven force and an unachievable blasting effect. Keep the horizontal plane, be a straight line, and at the same time face the air side.
Application areas:
1. Mining of metal mines, non-metal mines, and coal mines.
2. Earthwork excavation works: roads and bridges, houses, foundations, reinforced concrete demolition, and other works.
3. Tunneling projects: subways, culverts, mines, underground pipelines, river management, and other projects.
4. Smelting and dismantling work: crushing and dismantling various smelting furnaces, kilns, refractory bricks, and carbon blocks.
FAQ:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.
Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and a 60 MPa 4 kW oil pump.
Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long is the machine warranty?
A7: One year for the machine and provide technical support according to your needs.
Q8: How long will it take to arrange production?
A8: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight.
Q11: What are your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
