Hydraulic Rock Splitter Machine For Mining Engineering ISO CE Certificate Cost-Effective
-
Highlight
Mining Engineering Rock Splitter Machine
-
Machine Length650-1285mm
-
Plunger Diameter35-70mm
-
Hole Diameter87-200mm
-
Pressure100-150MPa
-
SpecificationHydraulic
-
CertificateCE, ISO
-
Place of OriginChina
-
Brand NameZT
-
CertificationCE, ISO, SGS
-
Minimum Order Quantity1 set
-
Pricenegotiable
-
Delivery Time1 week
-
Payment TermsT/T, D/A, L/C, D/P, Western Union, MoneyGram
-
Supply Ability10000sets/Year
Hydraulic Rock Splitter Machine For Mining Engineering ISO CE Certificate Cost-Effective

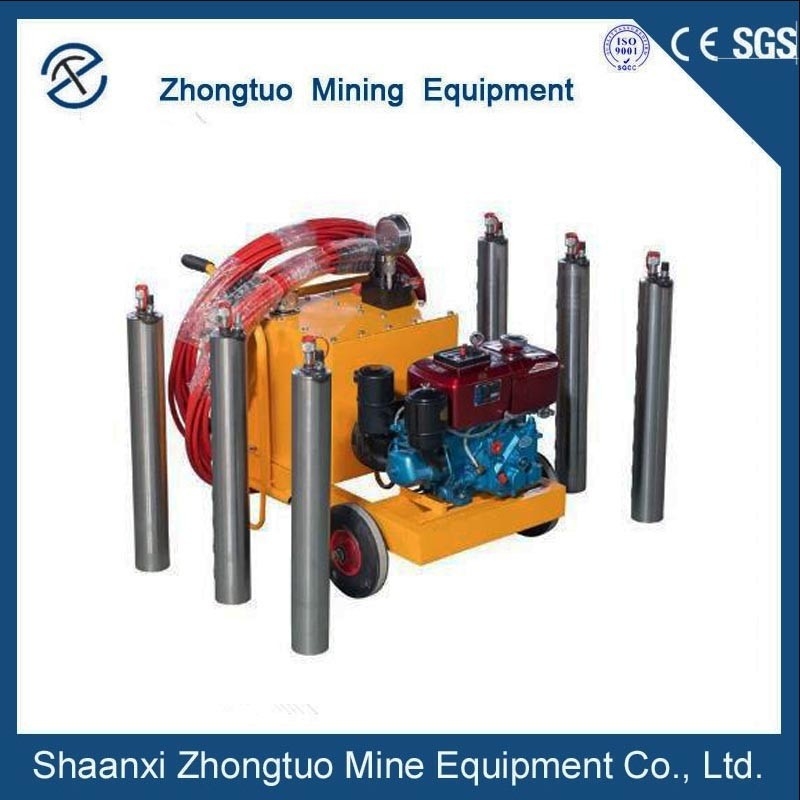

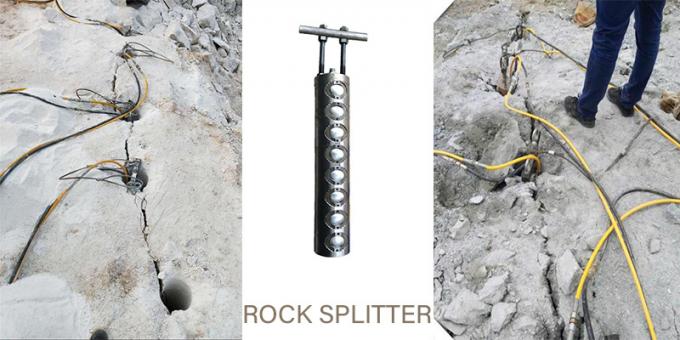

Hydraulic Plunger Rock Splitter is primarily made up of a high hydraulic pump station and a split rod. The force produced from the 140-180MP ultra-high pressure oil pump station acts on the hole, and the rock hydraulic splitter blasting equipment splits the rock in a predefined direction under the (3000t) forceful force.

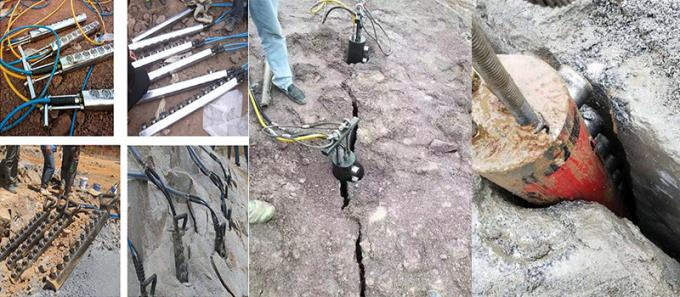

When punching, the hole must be straight and the rod must be positioned in the hole so that it is not exposed. If not, the force would be unequal, making the blasting effect impossible to achieve. Maintain the horizontal plane, form a straight line, and face the air side.
1. Mining includes metal, nonmetal, and coal mines.
2. Earthwork excavation activities include highways and bridges, dwellings, foundations, reinforced concrete demolition, and other projects.
3. Tunneling projects include subways, culverts, mines, underground pipelines, river management, and other infrastructure.
4. Smelting and dismantling tasks include crushing and disassembling various smelting furnaces, kilns, refractory bricks, and carbon blocks.
| Model | Length(mm) | Piston | Plunger | Hole | Extension | Weight(kg) |
| Quantity | Diameter(mm) | Diameter(mm) | Length(mm) | |||
| ZT90 | 650 | 9 | 35 | 87 | 15 | 27 |
| ZT100 | 710 | 8 | 45 | 112 | 25 | 47 |
| ZT110 | 820 | 11 | 40 | 100 | 22 | 44 |
| ZT120 | 770 | 8 | 45 | 122 | 15 | 60 |
| ZT130 | 1006 | 10 | 45 | 130 | 23 | 97 |
| ZT150 | 960 | 8 | 50 | 153 | 33 | 118 |
| ZT170 | 1004 | 8 | 60 | 174 | 34 | 166 |
| ZT200 | 1285 | 8 | 70 | 200 | 32 | 291 |
Certifications:
About the products:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.
Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.
Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.
Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is a 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.
Q5: What kind of packages does a set of anchors have?
A5: Anchor ring, clip, anchor pad, spiral rib.
Our products are sold all over the world, you can rest assured.
