Mounted Hydraulic Rock Splitter High Performance For Quarrying Tasks

The Mounted Rock Splitter Splitting Wedge for Hydraulic Rock Splitter is a strong and powerful equipment for tackling the most difficult rock splitting tasks. This adaptable rock splitter can be easily mounted on a crane or a standard excavator for open pits or shafts, or on a customized carrier for horizontal tunneling.

By raising the excavator's output pressure using a supercharger, the driving oil cylinder provides a significant driving force. The hydraulic oil is then supplied to the oil cylinder pipe in the airborne splitting machine via the excavator, allowing for fine control over the ultra-large rock splitter. This control allows the splitter to push and expand, providing enough splitting force to effectively break apart the target item.

To guarantee optimal performance and avoid unexpected failure of the hydraulic splitting machine, closely adhere to the following rules when using the splitter. First, ensure that the hole depth meets the specified standard before inserting the splitter for division. The hole depth standards necessitate that the splitter front end of the block be at least 900mm in length. Adherence to this condition ensures maximum effectiveness when separating blocks.

The Mounted Rock Splitter Splitting Wedge for Hydraulic Rock Splitter is an essential instrument for quarrying operations requiring high-quality performance. With its remarkable performance and attention to detail, this rock splitter ensures efficient and dependable rock splitting procedures. Choose this rock splitter for your quarry operations and witness its impressive capabilities firsthand.

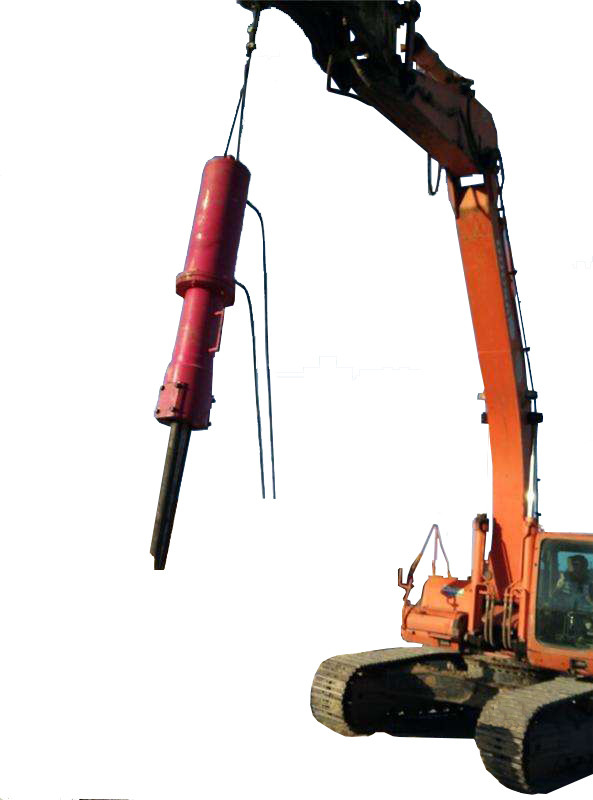

The massive rock splitter can be installed on a crane or a standard excavator for open pits or shafts, or on a specialized carrier for horizontal tunneling.
After the supercharger increases the excavator's output pressure, the driving oil cylinder generates driving force, and hydraulic oil is transported to the oil cylinder pipe in the airborne splitting machine via the excavator, and the splitting machine's ultra-huge rock splitter, which is controlled to push and expand, generates splitting force on the object.

To make the best use of our ultra-large rock splitters quarry and avoid unnecessary failure of the hydraulic splitting machine, please rigorously adhere to the following:

1. Once the hole depth meets the standard, insert the splitter for division. (Hole depth requirements: splitter front end of block length + 900mm or more; for example, if split block length is 600mm, drill more than 1500mm holes before using the split machine).
2. Each splitter divides a specific grease after splitting 3-5 holes to reduce friction between the wedge and the splitter.
3. The splitter pistol should not be used as a crowbar.

FAQ:
Q1: Whether the rig is used for rock holes or soil holes?
A1: Equipped with different drill bits according to the application object. Rock drilling rigs are equipped with round steel drill impact hammers and rock drill bits. The soil drilling rigs require a twist drill pipe and a three-blade drill bit.

Q2: How much tonnage can a bridge jack lift??
A2: The range is from 50 to 1000 tons, depending on the application needs we have the right choice for you.

Q3: How many meters is the connection between the jack and the oil pump?
A3: The factory standard is two meters. If you need longer, we will make it for you.

Q4: What is the difference between the hydraulic oil pump?
A4: For the tension jack, it is 50 MPa 3 kW oil pump and 60 MPa 4 kW oil pump.
