High Efficiency Fast Speed Hydraulic Pile Cutter Rock Splitter Machine For Concrete Piles
-
Highlight
High Efficiency Fast Speed Pile Cutter
,Fast Speed Rock Splitter Machine
,Concrete Piles Rock Splitter Machine
-
Motor Power22kw
-
Specification260*200*800mm, 420*450*59mm
-
Supply Ability1000pieces Per Year
-
TypePressure Pile Driver
-
Pressure Pile Driver TypeHydraulic Pile Driver
-
SamplesUS$ 1200/Piece 1 Piece(Min.Order) |
-
Place of OriginCN
-
Brand NameZT
-
CertificationEPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
-
Minimum Order Quantity1 set
-
Pricenegotiable
-
Delivery Time1 week
-
Payment TermsT/T, L/C, D/A, D/P, Western Union, MoneyGram
High Efficiency Fast Speed Hydraulic Pile Cutter Rock Splitter Machine For Concrete Piles
Feature of Hydraulic Round Pile Breaker
1. High flexibility: Simple modular structure, simple installation, with a variable number of modules depending on pile diameter.
2. Potent: The hydraulic pile breaker can harness the force of an excavator or a hydraulic station.
3. Environmentally friendly: A hydraulic drive with low noise and static pressure construction has no effect on pile quality.
4. Cost-effective: Personnel costs are low because the excavator is primarily operated by the driver and requires only one supervisor.
5. High security: Since the safety construction crew is also the excavator driver, he cannot come into direct touch with the shattered pile.
Pile Hammer Type:Hydraulic Hammer
Power Source:Hydraulic Pump or Execavator
Motor Power:22kw
Noise:With Noise
Certification:EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
Production Capacity:1000pieces Per Year
Transport Package:Wooden Case

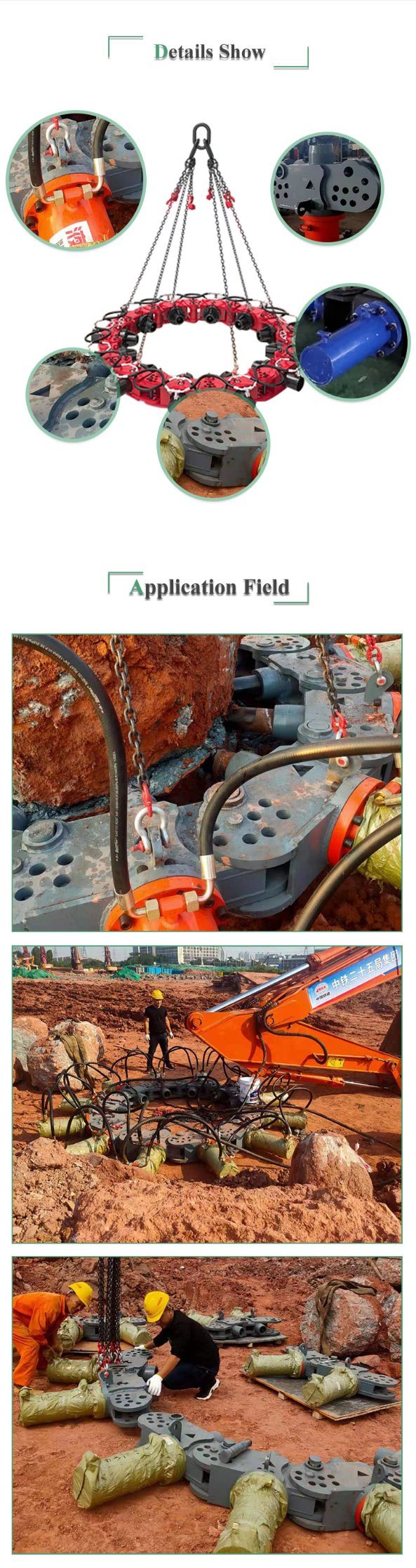

Detail of Hydraulic Pile Breaker
Srecification of Hydraulic Pile Breaker/Cutter
| Module Numbers | pc | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | |||||
| Total Weight | KG | 1600 | 2624 | 2952 | 3280 | 3608 | 3936 | 4264 | 4592 | 4920 | 5248 | 5576 | 5904 | |||||
| Pile Diameter | mm | 200-800 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1460-1970 | 1620-2200 | 2200-2360 | 2360-2500 | |||||
| Excavator tonnage | T | 20T-30T | 30T-40T | Hydraulic system/Pump station | ||||||||||||||
| Max. pressure of drill rod | 300KN | Max. pressure of the single cylinder | 20L/min | Auxiliary projects engineering tons | ≤20t | |||||||||||||
| Max. stroke of hydraulic cylinder | 300mm | Drill rod diameter | 110mm | Single module weight | 328KG | |||||||||||||
| Max. pressure of the hydraulic cylinder | 30MPa | Single broken height |
≤500mm | Single module size | 885*780*340 | |||||||||||||
Shaanxi Zhongtuo Mining Equipment Company was founded in 2005 in Xi'an, Shaanxi Province, It is a foreign trade company specializing in the research, development, and sales of machinery and equipment in the fields of mining, bridges, pavements, and tunnels.
At present, our customers are all over Russia, Thailand, Romania, Bulgaria, Albania, Colombia, Brazil, Peru, Uruguay, Saudi Arabia, Kuwait, United Arab Emirates, Oman, Turkey, Israel, Kazakhstan, India, and many other countries.
